ICX054AK

1/3-inch CCD Image Sensor for NTSC Color Camera

ICX054AK Features

* a field period readout system, and an electronic shutter with variable chargestorage time. Features

* High sensitivity (+3dB compare with ICX044BKA) and low dark current

* Continuous variable-speed shutter 1/60s (Typ.), 1/100s to 1/10000s

* Low smear

* Excellent antib

ICX054AK Datasheet (340.04 KB)

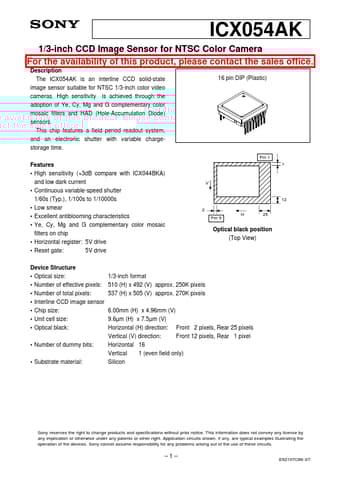

Preview of ICX054AK PDF

Datasheet Details

Part number:

ICX054AK

Manufacturer:

Sony Corporation

File Size:

340.04 KB

Description:

1/3-inch ccd image sensor for ntsc color camera.
