ICX055AK - 1/3-inch CCD Image Sensor

Sony Corporation

📥 Download Datasheet

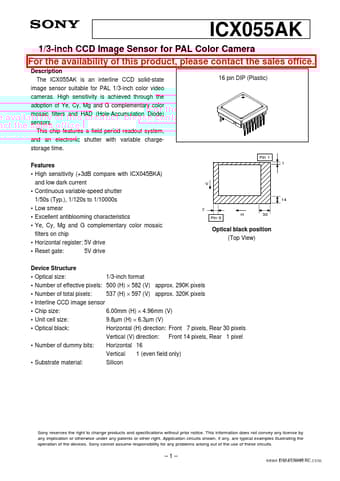

ICX055AK Datasheet Preview — Preview of ICX055AK PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ICX055AK
Manufacturer	Sony Corporation
File Size	291.73 KB
Description	1/3-inch CCD Image Sensor
Datasheet	ICX055AK_SonyCorporation.pdf

ICX055AK Product details

Description

The ICX055AK is an interline CCD solid-state image sensor suitable for PAL 1/3-inch color video cameras.

Features

a field period readout system, and an electronic shutter with variable chargestorage time. Features.
High sensitivity (+3dB compare with ICX045BKA) and low dark current.
Continuous variable-speed shutter 1/50s (Typ. ), 1/120s to 1/10000s.
Low smear.
Excellent antiblooming characteristics.
Ye, Cy, Mg and G complementary color mosaic filters on chip.
Horizontal register: 5V drive.
Reset gate: 5V drive 16 pin DIP (Plastic) Pin 1 1 V 1.
