ICX054BK

Diagonal 6mm (Type 1/3) CCD Image Sensor

Sony Corporation

ICX054BK Features

* a field period readout system, and an electronic shutter with variable charge-storage time. 16 pin DIP (Plastic) Features

* High sensitivity (+3dB at F5.6, +1.5dB at F1.2 compared with ICX054AK)

* High saturation signal (+1dB compared with ICX054AK)

* Low smear and low dark

ICX054BK General Description

The ICX054BK is an interline CCD solid-state image sensor suitable for NTSC color video cameras. Compared with the current product ICX054AK, sensitivity is improved drastically through the adoption of Super HAD CCD technology. Ye, Cy, Mg, and G complementary color mosaic filters are used. This chip .

ICX054BK Datasheet (250.17 KB)

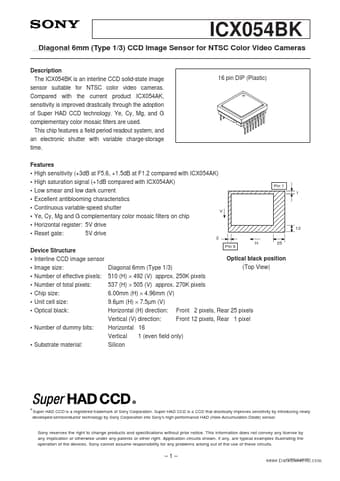

ICX054BK Datasheet Preview — Preview of ICX054BK PDF

Datasheet Details

Part number:

ICX054BK

Manufacturer:

Sony Corporation

File Size:

250.17 KB

Description:

Diagonal 6mm (type 1/3) ccd image sensor.
