ICX055BK

Diagonal 6mm (Type 1/3) CCD Image Sensor

ICX055BK Features

* a field period readout system, and an electronic shutter with variable charge-storage time. 16 pin DIP (Plastic) Pin 1 Features

* High sensitivity (+3dB at F5.6, +1.5dB at F1.2 compared with ICX055AK)

* High saturation signal (+1dB compared with ICX055AK) V

* Low smear and

ICX055BK General Description

The ICX055BK is an interline CCD solid-state image sensor suitable for PAL color video cameras. Compared with the current product ICX055AK, sensitivity is improved drastically through the adoption of Super HAD CCD technology. Ye, Cy, Mg, and G complementary color mosaic filters are used. This chip f.

ICX055BK Datasheet (251.97 KB)

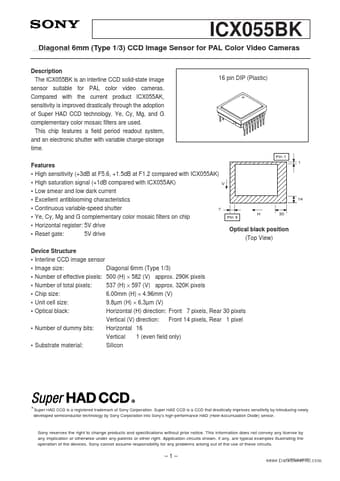

Preview of ICX055BK PDF

Datasheet Details

Part number:

ICX055BK

Manufacturer:

Sony Corporation

File Size:

251.97 KB

Description:

Diagonal 6mm (type 1/3) ccd image sensor.
