ICX054AL - 1/3-inch CCD Image Sensor

Sony Corporation

📥 Download Datasheet

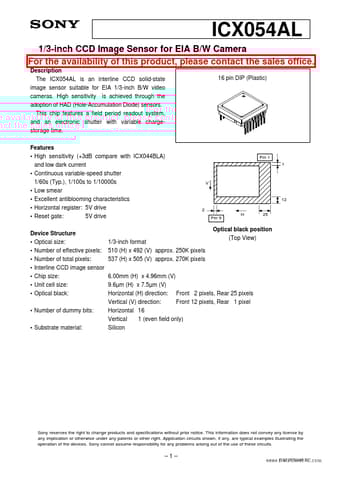

ICX054AL Datasheet Preview — Preview of ICX054AL PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ICX054AL
Manufacturer	Sony Corporation
File Size	277.24 KB
Description	1/3-inch CCD Image Sensor
Datasheet	ICX054AL_SonyCorporation.pdf

ICX054AL Product details

Description

The ICX054AL is an interline CCD solid-state image sensor suitable for EIA 1/3-inch B/W video cameras.

Features

a field period readout system, and an electronic shutter with variable chargestorage time. Features.
High sensitivity (+3dB compare with ICX044BLA) and low dark current.
Continuous variable-speed shutter 1/60s (Typ. ), 1/100s to 1/10000s.
Low smear.
Excellent antiblooming characteristics.
Horizontal register: 5V drive.
Reset gate: 5V drive Device Structure.
Optical size:.
Number of effective pixels:.
Number of total.
