STR-W777, FM STEREO/FM-AM RECEIVER SERVICE MANUAL

tions will however not be available).

MC Cold Reset * The cold reset clears all data including preset data stored in the RAM to initial conditions.

Execute this mode when returning the set to the customer.

Procedure: 1.

Press three buttons EDIT , ENTER/NEXT , an

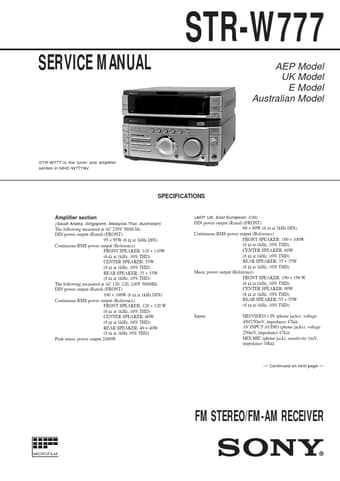

STR-W777 SERVICE MANUAL AEP Model UK Model E Model Australian Model STR-W777 is the tuner and amplifier section in MHC-W777AV.

SPECIFICATIONS Amplifier section (Saudi Arabia, Singapore, Malaysia,Thai, Australian) The following measured at AC 230V 50/60 Hz DIN power output (Rated) (FRONT) 95 + 95W (6 Ω at 1kHz DIN) Continuous RMS power output (Reference) FRONT SPEAKER: 110 + 110W (6 Ω at 1kHz, 10% THD) CENTER SPEAKER: 55W (8 Ω at 1kHz, 10% THD) REAR SPEAKER: 35 + 35W (8 Ω at 1kHz, 10% THD) The

STR-W777 Features

* !¡ !™ !£ @∞ @¢ @£ @™ @¡ @º !ª !

* !¶ !

* !∞ !¢ 1 MOVIE button 2 MUSIC button 3 GAME button 4 PLACE button 5 P FILE button 6 EFFECT ON/OFF button 7 OPEN/CLOSE button 8 TUNER BAND button 9 STEREO/MONO button !º MEMORY button !¡ KARAOKE PON/MIX button !™ MIC LEVEL dial !£ MIX MIC jac
