SV680K20, SV60K05 Special Medium Voltage Leaded Varistors

SV680K20 Description

SV Series Special Medium Voltage Leaded Varistor Stackpole Electronics, Inc.Resistive Product Solutions .
The SV Series of transient voltage suppressors are epoxy-coated square or rectangular shaped leaded varistors with AC operating voltage ranging 60V to.

SV680K20 Features

* Standard Varistor Types
* AC operating voltage (Vrms) from 60V to 680V
* DC operating voltage (Vdc) from 85V to 895V
* 6 model sizes equivalent to standard disc varistors from 5mm to 23mm
* Smaller nominal dimensions
* Broad range of current and energy handlin

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SV680K20, SV60K05. Please refer to the document for exact specifications by model.

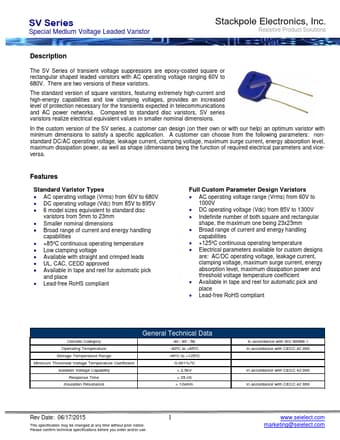

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SV680K20, SV60K05
Manufacturer
Stackpole
File Size
94.67 KB
Datasheet
SV60K05-Stackpole.pdf
Description
Special Medium Voltage Leaded Varistors
Note
This datasheet PDF includes multiple part numbers: SV680K20, SV60K05.
Please refer to the document for exact specifications by model.
