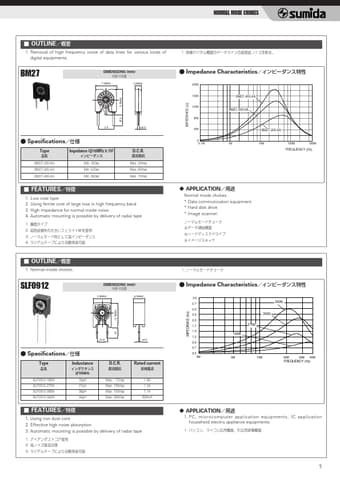

BM27 - NORMAL MODE CHOKES
NORMAL MODE CHOKES M OUTLINE 1.
Removal of high frequency noise of data lines for various kinds of digital equipments.
BM27 DIMENSIONS (mm) K Impedance Characteristics 2000 7.5MAX.
2.5MAX.
8.7MAX.
1600 BM27-400-6A IMPEDANCE (Ω) 1200 BM27-300-6A 800 5.0 25.5 ø0.5 400 BM27-200-6A K Specifications Type BM27-200-6A BM27-300-6A BM27-400-6A 0 0.1M 1M 10M 100M 500M Impedance (@10MHz 0.1V) Min.
450Ω Min.
620Ω Min.
860Ω D.C.R.
Max.
50mΩ Max.
60mΩ Max.
70mΩ FREQUENCY (Hz) M FEAT
BM27 Features
* 1. Low cost type 2. Using ferrite core of large loss in high frequency band 3. High impedance for normal mode noise. 4. Automatic mounting is possible by delivery of radial tape APPLICATION Normal mode chokes.
* Data communication equipment.
* Hard disk drive.
* Image scanner. www.Data
