STP2200ABGA - Uniprocessor System Controller

STP2200ABGA Description

STP2200ABGA July 1997 USC DATA SHEET .
The Uniprocessor System Controller (USC) has a DRAM memory controller and functions to regulate the flow of requests and data on the UPA bus.

STP2200ABGA Features

* Controls up to eight standard SS-10/SS-20-type DRAM SIMMs
* Supports various memory SIMM organizations: 16 MB, 64 MB, and 256 MB as well as dual-stacked 128-MB SIMMs
* Controls and generates a number of resets for the system
* Programmed via a standard 8-bit asynchr

📥 Download Datasheet

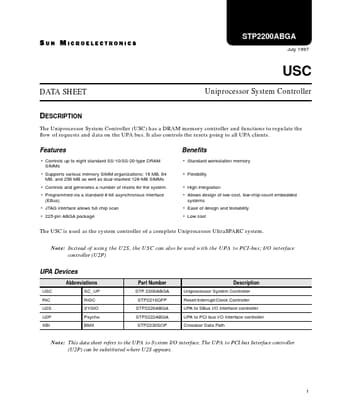

Preview of STP2200ABGA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP2200ABGA
Manufacturer
Sun
File Size
441.25 KB
Datasheet
STP2200ABGA_Sun.pdf
Description
Uniprocessor System Controller
