STP22NE10L N-CHANNEL STripFET POWER MOSFET

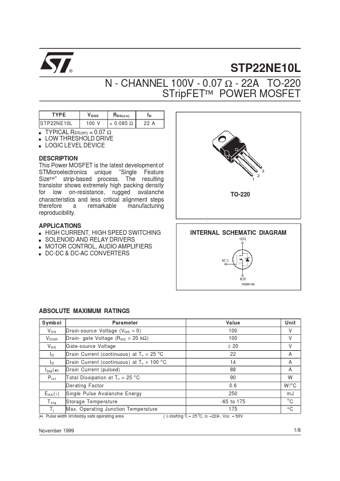

www.DataSheet4U.com ® STP22NE10L N - CHANNEL 100V - 0.07 Ω - 22A TO-220 STripFET™ POWER MOSFET TYPE STP22NE10L s s s V DSS 100 V R DS(on) < 0.085.
This Power MOSFET is the latest development of STMicroelectronics unique ”Single Feature Size™” strip-based process.

STP22NE10L_STMicroelectronics.pdf

STP22NE10L Datasheet Preview — Preview of STP22NE10L PDF

Datasheet Details

Part number:

STP22NE10L

Manufacturer:

STMicroelectronics ↗

File Size:

106.19 KB

Description:

N-CHANNEL STripFET POWER MOSFET

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC & DC-AC CONVERTERS 3 1 2 TO-220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symb ol V DS V DGR VGS ID ID I DM (
* ) P tot E AS ( 1 ) T st g Tj Parameter Drain-source Voltage

STP22NE10L Distributors
