STP220N6F7

N-channel Power MOSFET

STP220N6F7 Features

* Order code VDS STP220N6F7 60 V RDS(on)max 0.0024 Ω ID 120 A PTOT 237 W

* Among the lowest RDS(on) on the market

* Excellent figure of merit (FoM)

* Low Crss/Ciss ratio for EMI immunity

* High avalanche ruggedness Applications

* Switching applications Description This N-channe

STP220N6F7 General Description

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching. Order code STP220N6F7 Table 1: Device summary Marking .

STP220N6F7 Datasheet (442.10 KB)

Preview of STP220N6F7 PDF

Datasheet Details

Part number:

STP220N6F7

Manufacturer:

STMicroelectronics ↗

File Size:

442.10 KB

Description:

N-channel power mosfet.

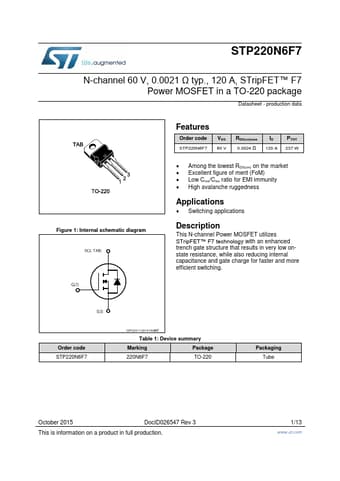

STP220N6F7 N-channel 60 V, 0.0021 Ω typ., 120 A, STripFET™ F7 Power MOSFET in a TO-220 package Datasheet - production data Figure 1: Internal schema.
