STP22NM50 N-CHANNEL Power MOSFET

The MDmesh™ is a new revolutionary MOSFET technology that associates the Multiple Drain process with the Company’s PowerMESH™ horizontal layout. The resulting product has an outstanding low on-resistance, impressively high dv/dt and excellent avalanche characteristics. The adoption of the Company’s .

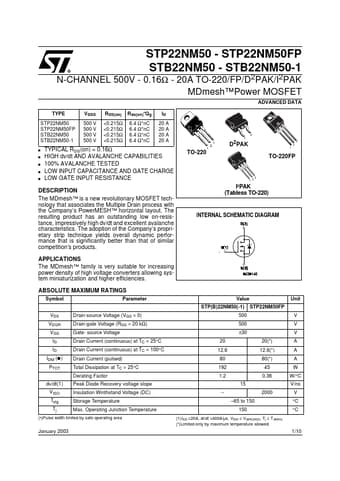

www.DataSheet4U.com STP22NM50 - STP22NM50FP STB22NM50 - STB22NM50-1 N-CHANNEL 500V - 0.16Ω - 20A TO-220/FP/D2PAK/I2PAK MDmesh™Power MOSFET ADVANCED DATA TYPE STP22NM50 STP22NM50FP STB22NM50 STB22NM50-1 s s s s s VDSS 500 V 500 V 500 V 500 V RDS(on) <0.215Ω <0.215Ω <0.215Ω <0.215Ω Rds(on) Qg 6.4 Ω nC 6.4 Ω nC 6.4 Ω nC 6.4 Ω nC ID 20 A 20 A 20 A 20 A 3 1 TYPICAL RDS(on) = 0.16Ω HIGH dv/dt AND AVALANCHE CAPABILITIES 100% AVALANCHE TESTED LOW INPUT CAPACITANCE AND GATE CHA.

STP22NM50 Datasheet (319.49 KB)

Preview of STP22NM50 PDF
STP22NM50 Datasheet Preview Page 2 STP22NM50 Datasheet Preview Page 3

Datasheet Details

Part number:

STP22NM50

Manufacturer:

STMicroelectronics ↗

File Size:

319.49 KB

Description:

N-channel power mosfet.
