STP22NM60N

Power MOSFET

STP22NM60N Features

* Order codes STB22NM60N STF22NM60N STI22NM60N STP22NM60N STW22NM60N VDSS (@Tjmax) 650 V 650 V 650 V 650 V 650 V RDS(on) max. < 0.22 Ω < 0.22 Ω < 0.22 Ω < 0.22 Ω < 0.22 Ω ID 16 A 16 A 16 A 16 A 16 A

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resis

STP22NM60N General Description

These devices are made using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficienc.

STP22NM60N Datasheet (564.98 KB)

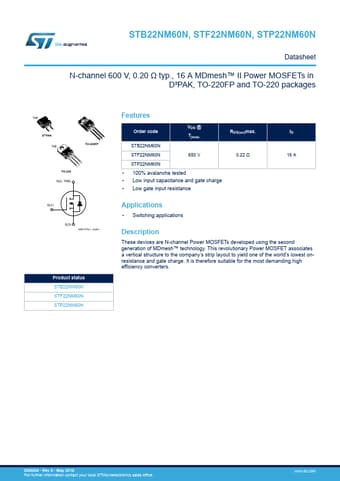

Preview of STP22NM60N PDF

Datasheet Details

Part number:

STP22NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

564.98 KB

Description:

Power mosfet.
STB22NM60N, STF22NM60N, STI22NM60N STP22NM60N, STW22NM60N N-channel 600 V, 0.2 Ω, 16 A MDmesh™ II Power MOSFET in D2PAK, TO-220FP, I2PAK, TO-220 and T.
