1N4150 - SMALL SIGNAL SWITCHING DIODES

This page provides the datasheet information for the 1N4150, a member of the 1N4149 SMALL SIGNAL SWITCHING DIODES family.

Datasheet Summary

Features

  • ! Silicon epitaxial planar diode ! Fast swithching diodes Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings TA = 25°C unless otherwise specified Type 1N914 1N4149 1N4150 1N4152 1N4153 1N4154 1N4447 1N4449 1N4450 1N4451 1N4453 1N4454 Peak Max. Max. Max. reverse Aver. Power Junction voltage.

📥 Download Datasheet

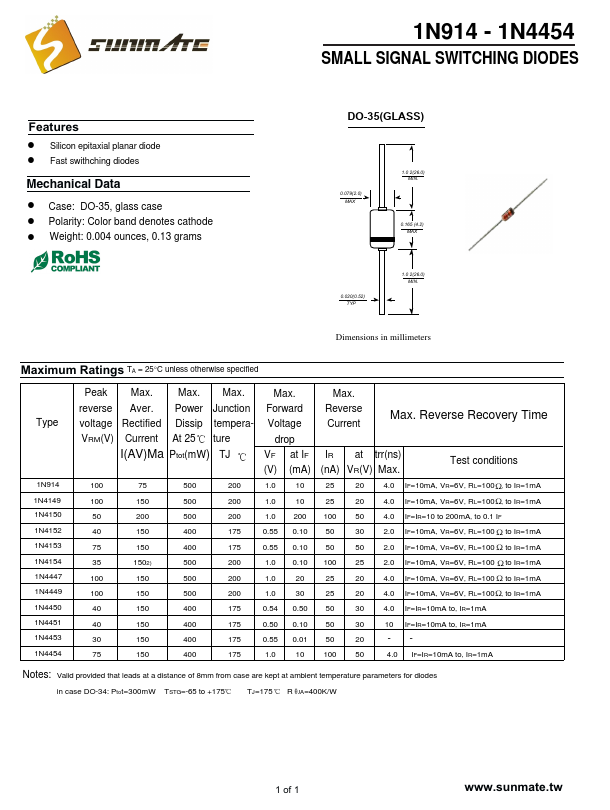

Datasheet preview – 1N4150

Datasheet Details

Part number 1N4150
Manufacturer Sunmate
File Size 266.17 KB
Description SMALL SIGNAL SWITCHING DIODES
Datasheet download datasheet 1N4150 Datasheet
Additional preview pages of the 1N4150 datasheet.

📁 Similar Datasheet

  • 1N4150 - HIGH SPEED SWITCHING DIODES (DC COMPONENTS)
  • 1N4150 - Small Signal Fast Switching Diodes (Vishay)
  • 1N4150 - FAST SWITCHING DIODE (SMC Diode)
  • 1N4150 - HIGH SPEED SWITCHING DIODE (Rectron)
  • 1N4150 - FAST SWITCHING SURFACE MOUNT DIODES (PANJIT)
  • 1N4150 - HIGH SPEED SWITCHING DIODE (EIC)
  • 1N4150-1 - SWITCHING DIODES (Compensated Deuices Incorporated)
  • 1N4150-1 - Silicon Switching Diode (MA-COM)
  • 1N4150-1 - SWITCHING DIODE (Microsemi)
  • 1N4150-1 - Silicon Switching Diodes (Aeroflex)
Other Datasheets by Sunmate
  • 1N4150W - SURFACE MOUNT FAST SWITCHING DIODE
  • 1N4151 - AXIAL LEADED FAST SWITCHING DIODE
  • 1N4151W - SURFACE MOUNT FAST SWITCHING DIODE
  • 1N4151WS - SURFACE MOUNT FAST SWITCHING DIODE
  • 1N4152 - SMALL SIGNAL SWITCHING DIODES
  • 1N4153 - SMALL SIGNAL SWITCHING DIODES
  • 1N4154 - SMALL SIGNAL SWITCHING DIODES
  • 1N4148 - FAST SWITCHING DIODES

Full PDF Text Transcription

Click to expand full text
1N914 - 1N4454 SMALL SIGNAL SWITCHING DIODES Features ! Silicon epitaxial planar diode ! Fast swithching diodes Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings TA = 25°C unless otherwise specified Type 1N914 1N4149 1N4150 1N4152 1N4153 1N4154 1N4447 1N4449 1N4450 1N4451 1N4453 1N4454 Peak Max. Max. Max. reverse Aver. Power Junction voltage Rectified Dissip temperaVRM(V) Current At 25 ture I(AV)Ma Ptot(mW) TJ Max. Forward Voltage drop VF at IF (V) (mA) Max. Reverse Current Max. Reverse Recovery Time IR at trr(ns) (nA) VR(V) Max. Test conditions 100 75 500 200 1.
