1S1888, 1S1885 PLASTIC SILICON RECTIFIER DIODES

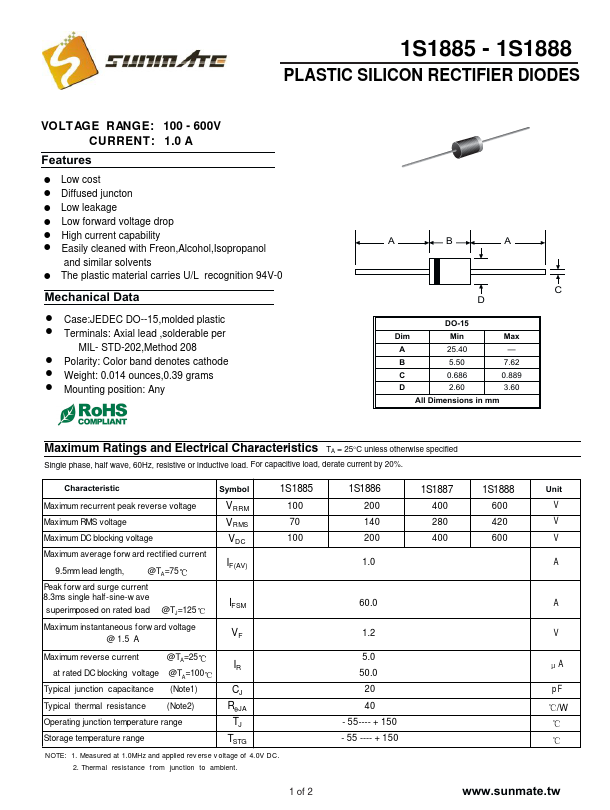

📥 Download Datasheet  Datasheet Preview Page 1

Description

1S1885 - 1S1888 PLASTIC SILICON RECTIFIER DIODES VOLTAGE RANGE: 100 - 600V CURRENT: 1.0 A .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1S1888, 1S1885. Please refer to the document for exact specifications by model.

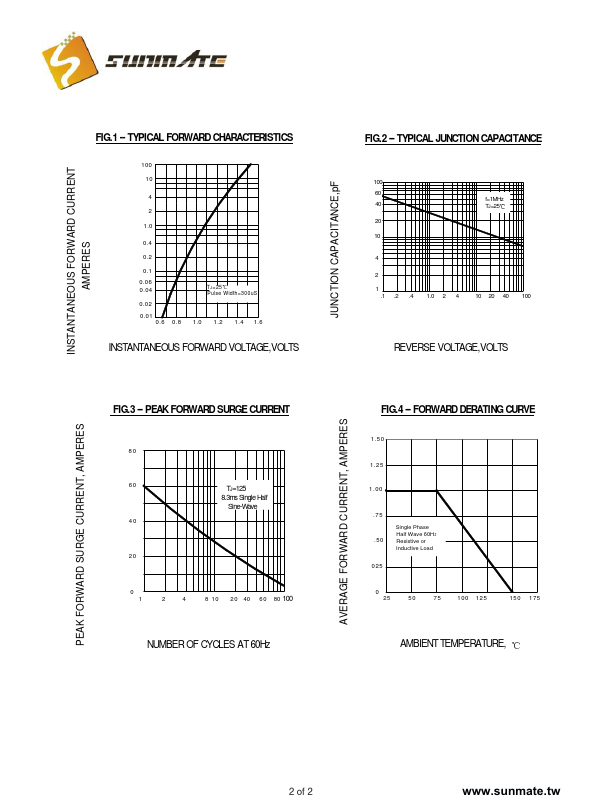

datasheet Preview Page 2

Datasheet Specifications

Part number
1S1888, 1S1885
Manufacturer
Sunmate
File Size
364.87 KB
Datasheet
1S1885-Sunmate.pdf
Description
PLASTIC SILICON RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: 1S1888, 1S1885.
Please refer to the document for exact specifications by model.

Features

* ! Low cost ! Diffused juncton ! Low leakage ! Low forward voltage drop ! High current capability ! Easily cleaned with Freon,Alcohol,Isopropanol and similar solvents ! The plastic material carries U/L recognition 94V-0 Mechanical Data ! Case:JEDEC DO
* 15,molded plastic ! Terminals: Axial lead
