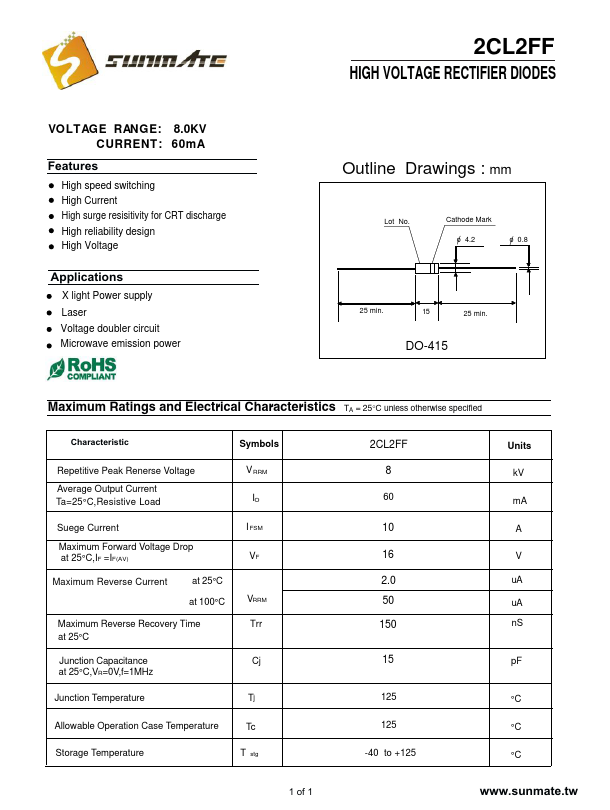

Datasheet Specifications
- Part number
- 2CL2FF
- Manufacturer
- Sunmate
- File Size
- 75.72 KB
- Datasheet
- 2CL2FF-Sunmate.pdf
- Description
- High voltage diode
Description
VOLTAGE RANGE: 8 .0KV CURRENT: 60m A .
Applications
* X light Power supply Laser Voltage doubler circuit Microwave emission power 2CL2FF HIGH VOLTAGE RECTIFIER DIODES Outline Drawings : mm Lot No. Cathode Mark o 4.2 o 0.8 25 min. 15 25 min. DO-415 Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Characteris2CL2FF Distributors
