2CL70 High voltage diode

Sunmate

Description

2CL70 HIGH VOLTAGE RECTIFIER DIODES VOLTAGE RANGE: 6KV CURRENT: 5.0 m A .

📥 Download Datasheet

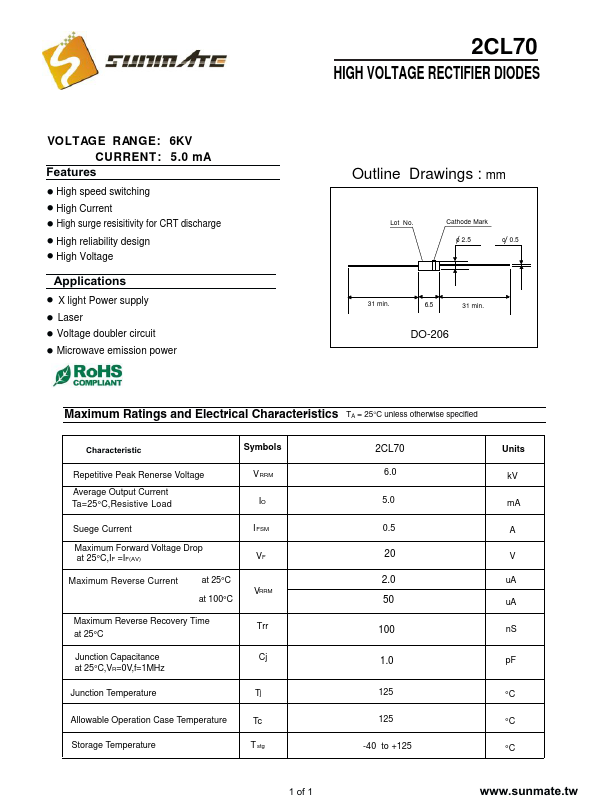

2CL70 Datasheet Preview — Preview of 2CL70 PDF

Datasheet Specifications

Part number: 2CL70
Manufacturer: Sunmate
File Size: 77.16 KB
Datasheet: 2CL70-Sunmate.pdf
Description: High voltage diode

Features

* High speed switching
* High Current
* High surge resisitivity for CRT discharge
* High reliability design

Applications

* X light Power supply
* Laser
* Voltage doubler circuit
* Microwave emission power Outline Drawings : mm Lot No. Cathode Mark o 2.5 o 0.5 31 min. 6.5 31 min. DO-206 Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Characteristic Symbols
