DSR03A - SURFACE MOUNT RECTIFIER DIODES

Sunmate

DSR03A Description

DSR03A - DSR03M SURFACE MOUNT RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 0.3 A .

DSR03A Features

* ! Low profile space ! Ideal for automated placement ! Glass passivated chip junctions ! Low forward voltage drop ! Low leakage current ! High forward surge capability ! High temperature solder：ing 260℃/10 seconds at terminals Mechanical Data ! Case: JEDEC SOD-123FL molded plastic body over passivate

📥 Download Datasheet

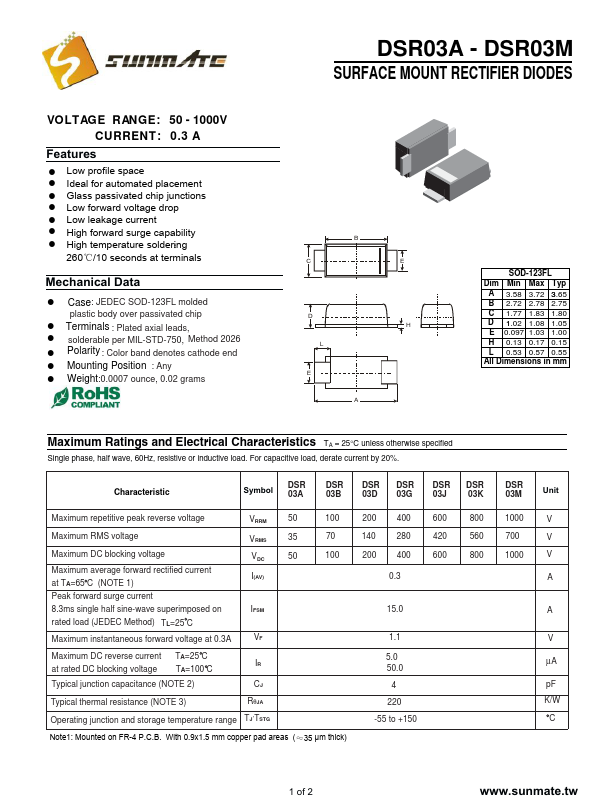

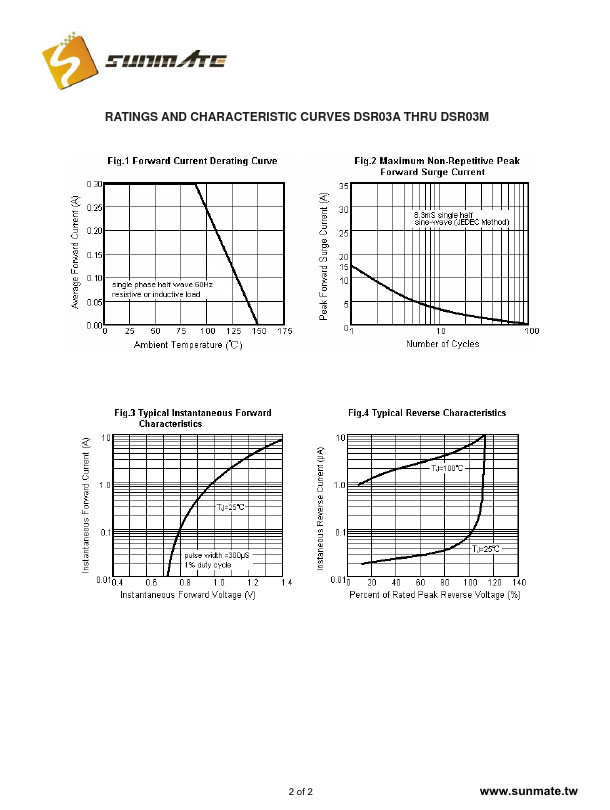

DSR03A Datasheet Preview — Preview of DSR03A PDF

Datasheet Details

Part number: DSR03A
Manufacturer: Sunmate
File Size: 222.43 KB
Datasheet: DSR03A-Sunmate.pdf
Description: SURFACE MOUNT RECTIFIER DIODES
