DSR03J, DSR03A - SURFACE MOUNT RECTIFIER DIODES

Sunmate

DSR03J Description

DSR03A - DSR03M SURFACE MOUNT RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 0.3 A .

DSR03J Features

* ! Low profile space ! Ideal for automated placement ! Glass passivated chip junctions ! Low forward voltage drop ! Low leakage current ! High forward surge capability ! High temperature solder：ing 260℃/10 seconds at terminals Mechanical Data ! Case: JEDEC SOD-123FL molded plastic body over passivate

📥 Download Datasheet

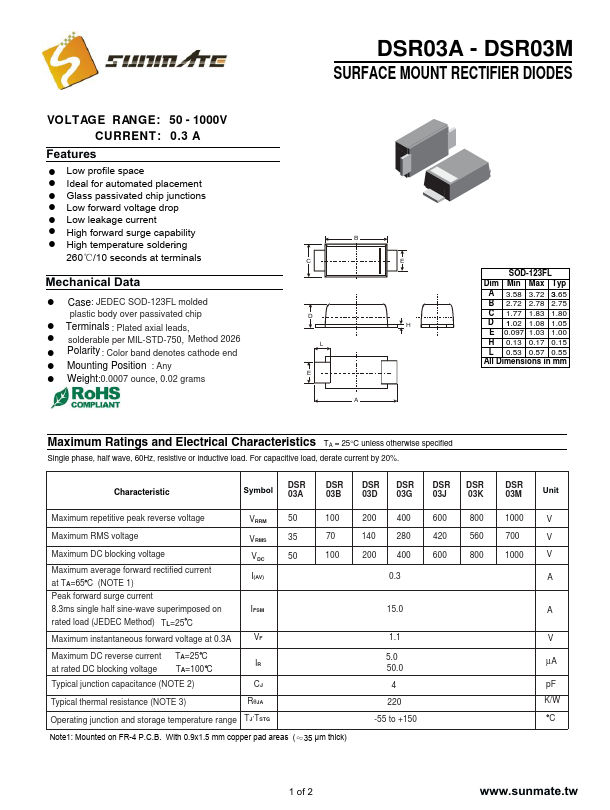

DSR03J Datasheet Preview — This datasheet PDF includes multiple part numbers: DSR03J, DSR03A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: DSR03J, DSR03A
Manufacturer: Sunmate
File Size: 222.43 KB
Datasheet: DSR03A-Sunmate.pdf
Description: SURFACE MOUNT RECTIFIER DIODES
Note: This datasheet PDF includes multiple part numbers: DSR03J, DSR03A.
Please refer to the document for exact specifications by model.
