DSR05A - SURFACE MOUNT RECTIFIER DIODES

DSR05A Description

VOLTAGE RANGE: 50 - 1000V CURRENT: 0.5A .

DSR05A Features

* ! Low profile space ! Ideal for automated placement ! Glass passivated chip junctions ! Low forward voltage drop ! Low leakage current ! High forward surge capability ! High temperature solder：ing 260℃/10 seconds at terminals Mechanical Data ! Case: JEDEC SOD-123FL molded plastic body over passivate

📥 Download Datasheet

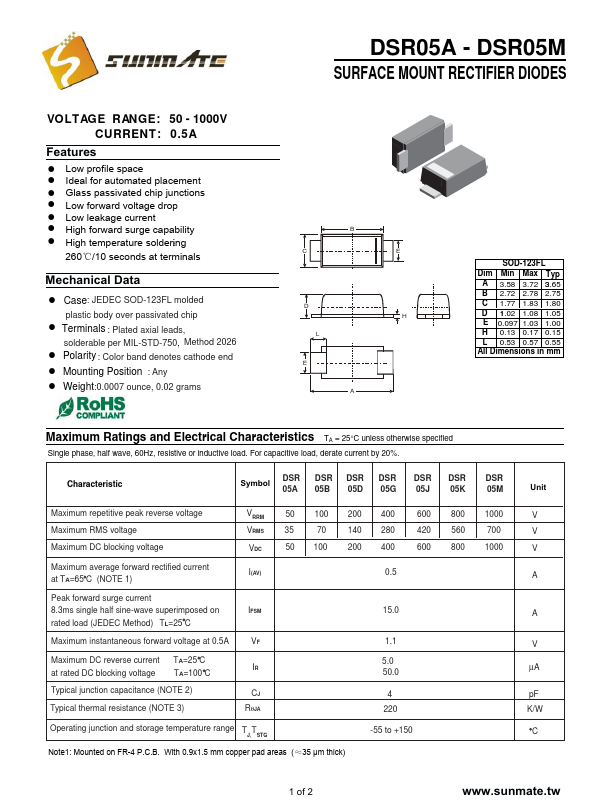

Preview of DSR05A PDF

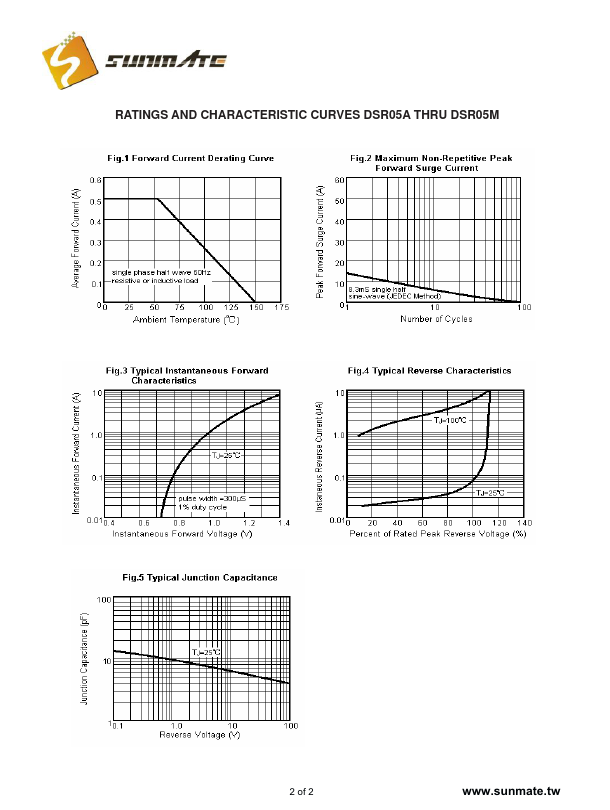

datasheet Preview Page 2

Datasheet Details

Part number
DSR05A
Manufacturer
Sunmate
File Size
210.01 KB
Datasheet
DSR05A-Sunmate.pdf
Description
SURFACE MOUNT RECTIFIER DIODES
