ESJA52-14A - HIGH VOLTAGE RECTIFIER DIODES

ESJA52-14A Description

ESJA52-14A HIGH VOLTAGE RECTIFIER DIODES VOLTAGE RANGE: 14KV CURRENT: 5.0m A .

ESJA52-14A Applications

* X light Power supply Laser Voltage doubler circuit Microwave emission power Outline Drawings : mm Lot No. Cathode Mark o 3.0 o 0.5 27 min. 10 27 min. Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Characteristic Symbols Repetitive Peak Renerse Voltage

📥 Download Datasheet

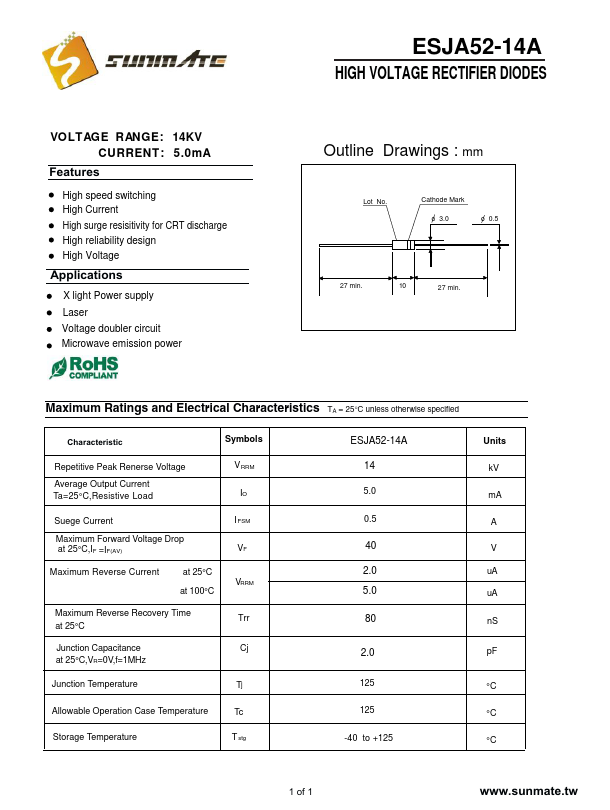

Preview of ESJA52-14A PDF

Datasheet Details

Part number
ESJA52-14A
Manufacturer
Sunmate
File Size
91.49 KB
Datasheet
ESJA52-14A-Sunmate.pdf
Description
HIGH VOLTAGE RECTIFIER DIODES
