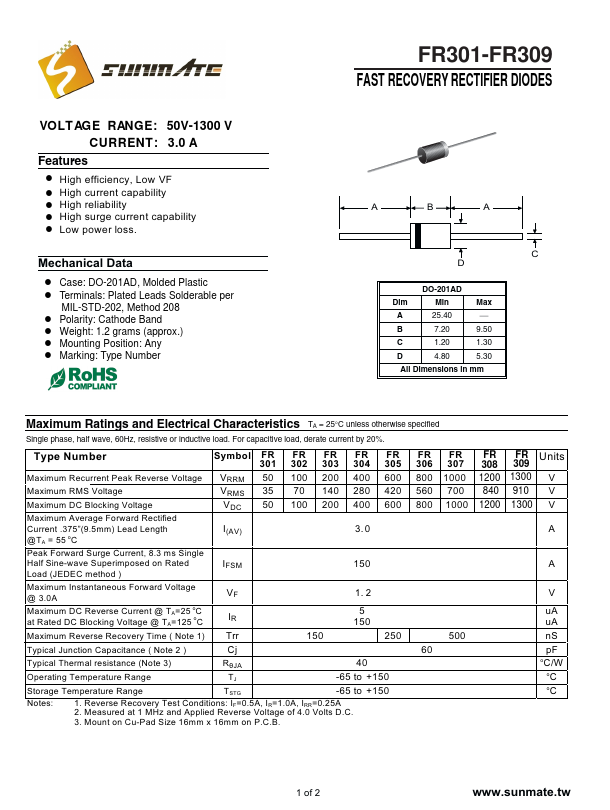

FR304, FR301 - FAST RECOVERY RECTIFIER DIODES

FR304 Description

VOLTAGE RANGE: 50V-1300 V CURRENT: 3.0 A .

FR304 Features

* ! High efficiency, Low VF ! High current capability ! High reliability ! High surge current capability ! Low power loss. Mechanical Data ! Case: DO-201AD, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 1.2 grams (approx. ) ! Mounting

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR304, FR301. Please refer to the document for exact specifications by model.

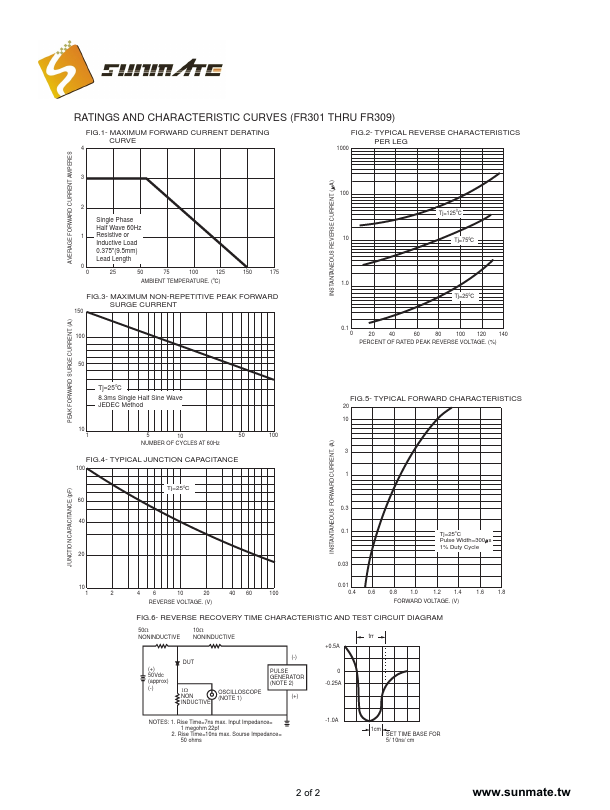

datasheet Preview Page 2

Datasheet Details

Part number
FR304, FR301
Manufacturer
Sunmate
File Size
348.28 KB
Datasheet
FR301-Sunmate.pdf
Description
FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: FR304, FR301.
Please refer to the document for exact specifications by model.
