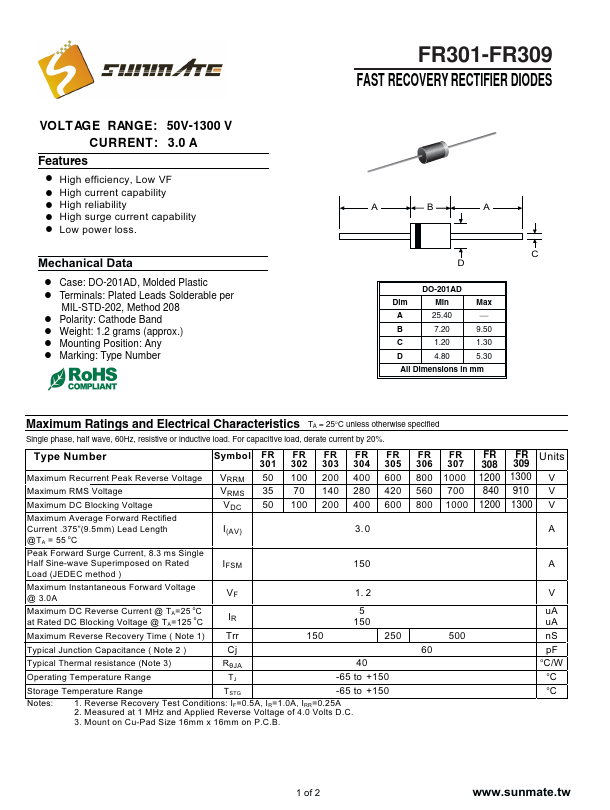

FR308, FR301 - FAST RECOVERY RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	FR308, FR301
Manufacturer	Sunmate
File Size	348.28 KB
Description	FAST RECOVERY RECTIFIER DIODES
Datasheet	FR301-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: FR308, FR301. Please refer to the document for exact specifications by model.

! High efficiency, Low VF ! High current capability ! High reliability ! High surge current capability ! Low power loss. Mechanical Data ! Case: DO-201AD, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 1.2 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number FR301-FR309 FAST.
