VOLTAGE RANGE: 50V-1300 V CURRENT: 3.0 A
Features
! High efficiency, Low VF ! High current capability ! High reliability ! High surge current capability ! Low power loss.
Mechanical Data
! Case: DO-201AD, Molded Plastic ! Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 1.2 grams (approx.) ! Mounting Position: Any ! Marking: Type Number

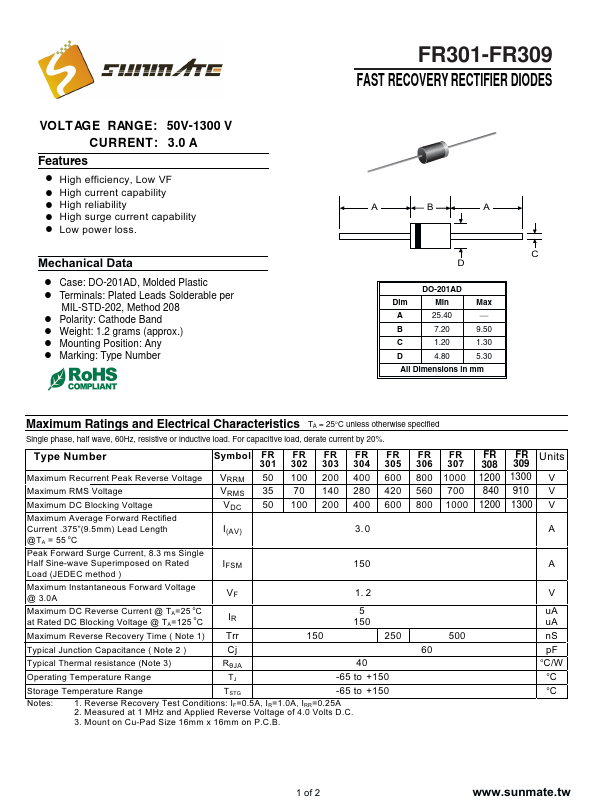

FR301-FR309
FAST RECOVERY RECTIFIER DIODES
A
B
A
C D
DO-201AD
Dim
Min
Max
A
25.40
¾
B
7.20
9.50
C
1.20
1.30
D
4.80
5.30
All Dimensions in mm

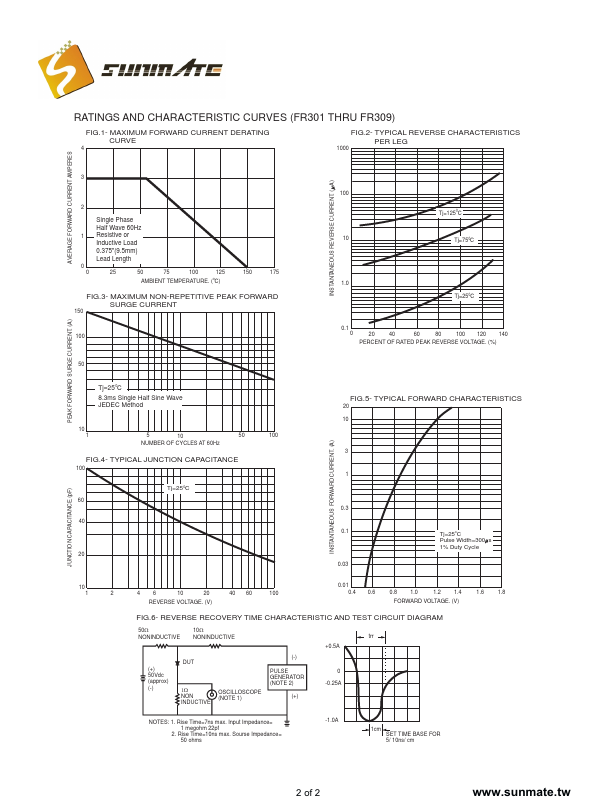

Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
