FR6B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

This page provides the datasheet information for the FR6B, a member of the FR6A SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES family.

Datasheet Summary

Features

  • ! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability ! Classification Rating 94V-0 Mechanical Data ! Case: SMC(DO-214AB),Molded Plastic ! Terminals: Solder Plated Terminal ! Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.21 grams (approx. ) B A J H G E SMC/DO-214AB Dim.

📥 Download Datasheet

Datasheet preview – FR6B

Datasheet Details

Part number FR6B
Manufacturer Sunmate
File Size 82.52 KB
Description SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet download datasheet FR6B Datasheet

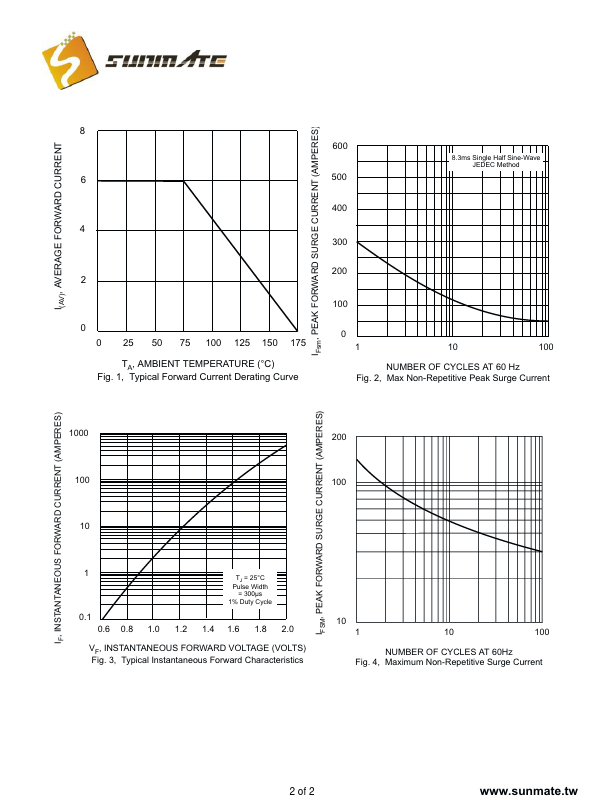

Additional preview pages of the FR6B datasheet.

📁 Similar Datasheet

  • FR6B - 6 Amp Fast Recovery Rectifier (MCC)
  • FR6B02 - Silicon Fast Recovery Diode (America Semiconductor)
  • FR6B02 - Silicon Fast Recovery Diode (GeneSiC)
  • FR6B05 - Silicon Fast Recovery Diode (America Semiconductor)
  • FR6B05 - Silicon Fast Recovery Diode (GeneSiC)
  • FR6BR02 - Silicon Fast Recovery Diode (America Semiconductor)
  • FR6BR02 - Silicon Fast Recovery Diode (GeneSiC)
  • FR6BR05 - Silicon Fast Recovery Diode (America Semiconductor)
  • FR6BR05 - Silicon Fast Recovery Diode (GeneSiC)
  • FR6005 - 6A Leaded Type Fast Rectifiers (CITC)
Other Datasheets by Sunmate
  • FR6A - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • FR6D - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • FR6G - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • FR6J - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • FR6K - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • FR6M - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text

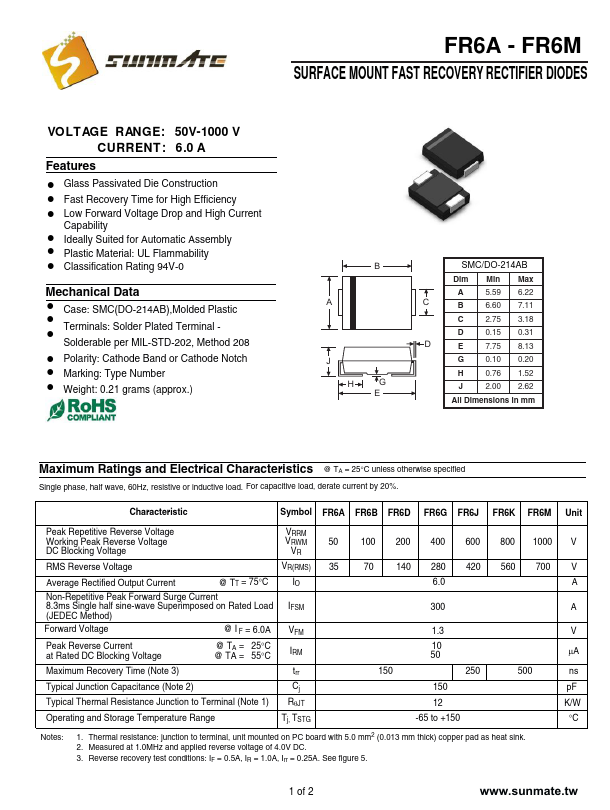

FR6A - FR6M SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50V-1000 V CURRENT: 6 .0 A Features ! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability ! Classification Rating 94V-0 Mechanical Data ! Case: SMC(DO-214AB),Molded Plastic ! Terminals: Solder Plated Terminal ! Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.21 grams (approx.) B A J H G E SMC/DO-214AB Dim Min Max A 5.59 6.22 C B 6.60 7.11 C 2.75 3.18 D 0.15 0.31 D E 7.75 8.13 G 0.10 0.20 H 0.76 1.52 J 2.00 2.
