FR6J, FR6A SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

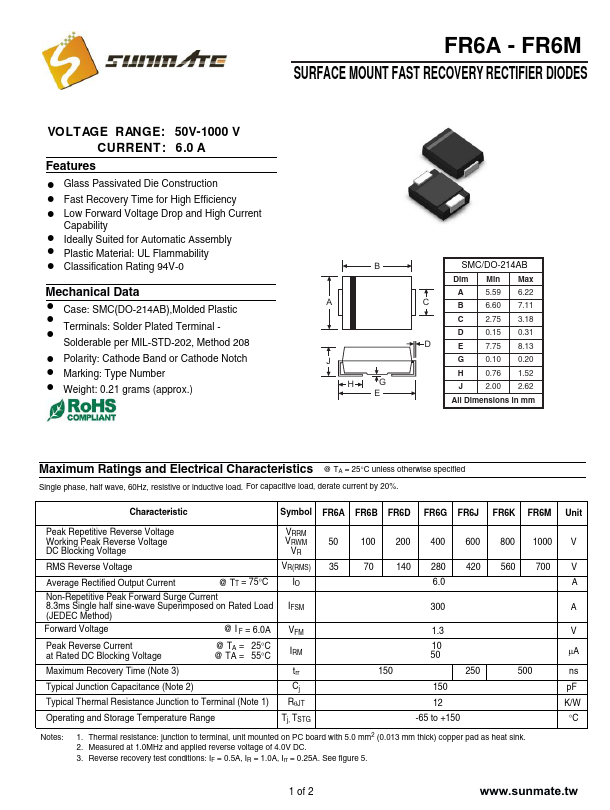

📥 Download Datasheet Datasheet Preview Page 1

Description

FR6A - FR6M SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50V-1000 V CURRENT: 6 .0 A .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR6J, FR6A. Please refer to the document for exact specifications by model.

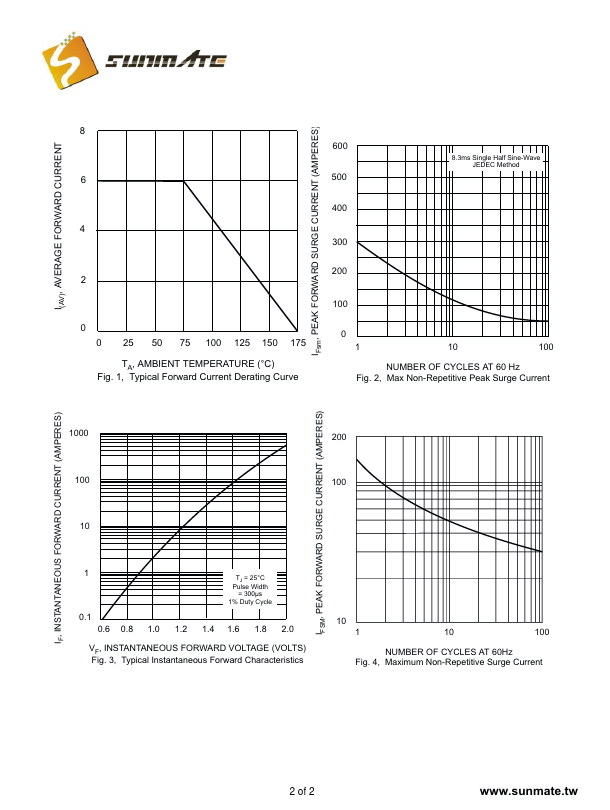

datasheet Preview Page 2

Datasheet Specifications

Part number
FR6J, FR6A
Manufacturer
Sunmate
File Size
82.52 KB
Datasheet
FR6A-Sunmate.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: FR6J, FR6A.
Please refer to the document for exact specifications by model.

Features

* ! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability ! Classification Rating 94V-0 Mechanical Data ! Case: SMC(DO-214AB),Molded Plastic ! Termina
