FR6D - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

This page provides the datasheet information for the FR6D, a member of the FR6A SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES family.

Datasheet Summary

Features

  • ! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability ! Classification Rating 94V-0 Mechanical Data ! Case: SMC(DO-214AB),Molded Plastic ! Terminals: Solder Plated Terminal ! Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.21 grams (approx. ) B A J H G E SMC/DO-214AB Dim.

📥 Download Datasheet

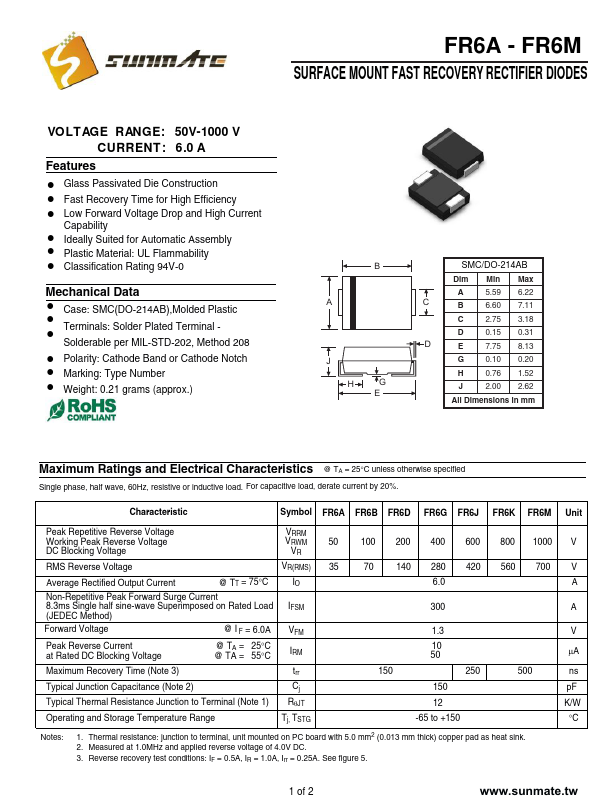

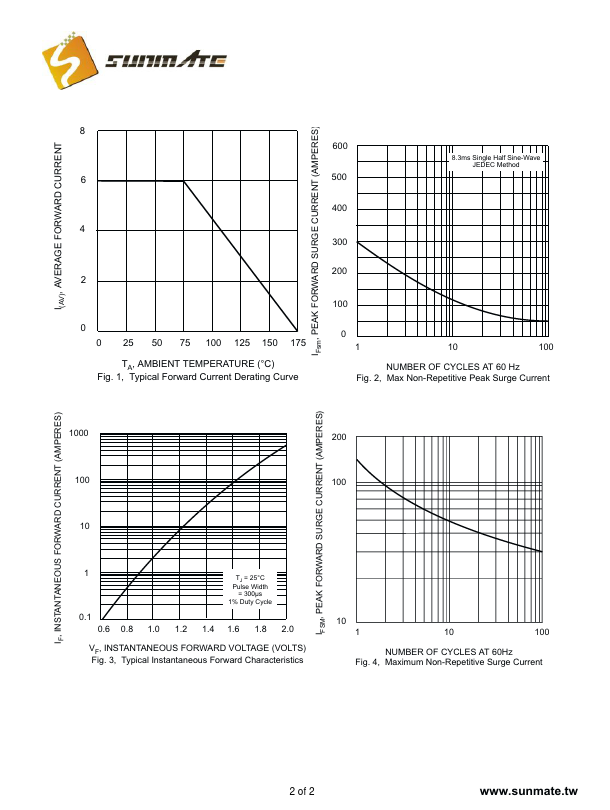

Datasheet preview – FR6D

Datasheet Details

Part number FR6D
Manufacturer Sunmate
File Size 82.52 KB
Description SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet download datasheet FR6D Datasheet
