GBP210, GBP2005 SINGLE-PHASE BRIDGE RECTIFIER

Sunmate

Description

GBP2005-GBP210 SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE RANGE: 50 - 1000V CURRENT: 2.0 A .

📥 Download Datasheet

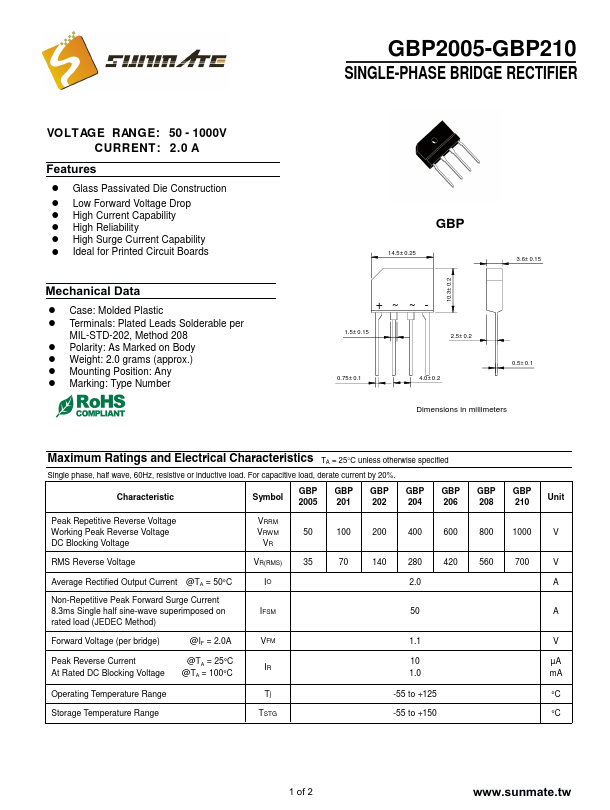

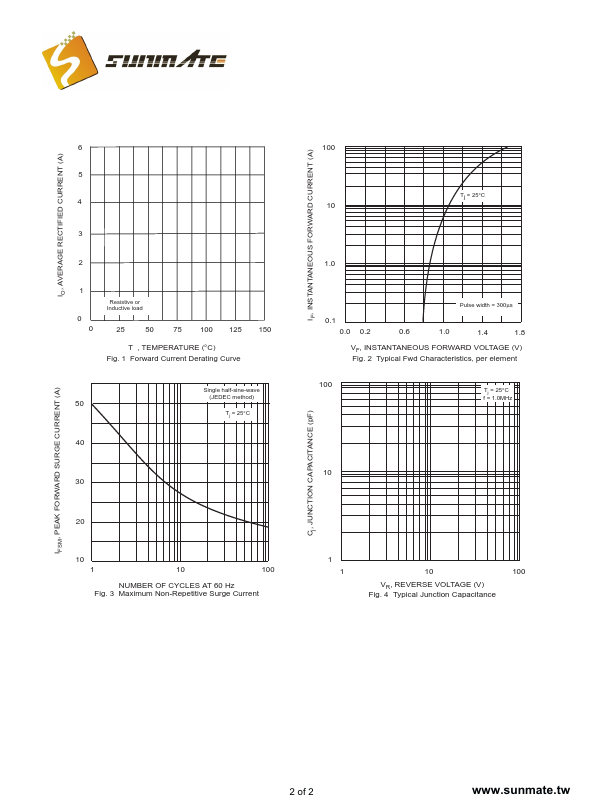

GBP210 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBP210, GBP2005. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GBP210, GBP2005
Manufacturer: Sunmate
File Size: 1.09 MB
Datasheet: GBP2005-Sunmate.pdf
Description: SINGLE-PHASE BRIDGE RECTIFIER
Note: This datasheet PDF includes multiple part numbers: GBP210, GBP2005.
Please refer to the document for exact specifications by model.

Features

* ! Glass Passivated Die Construction ! Low Forward Voltage Drop ! High Current Capability ! H igh R eliability ! High Surge Current Capability ! Ideal for Printed Circuit Boards Mechanical Data ! Case: Molded Plastic !
