MB251W - SINGLE-PHASE SILICON BRIDGE RECTIFIER

Product Overview

Sunmate

Part number	MB251W
Manufacturer	Sunmate
File Size	1.30 MB
Description	SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet	MB251W Datasheet
Note	This datasheet PDF includes multiple part numbers: MB251W, MB2505W. Please refer to the document for exact specifications by model.

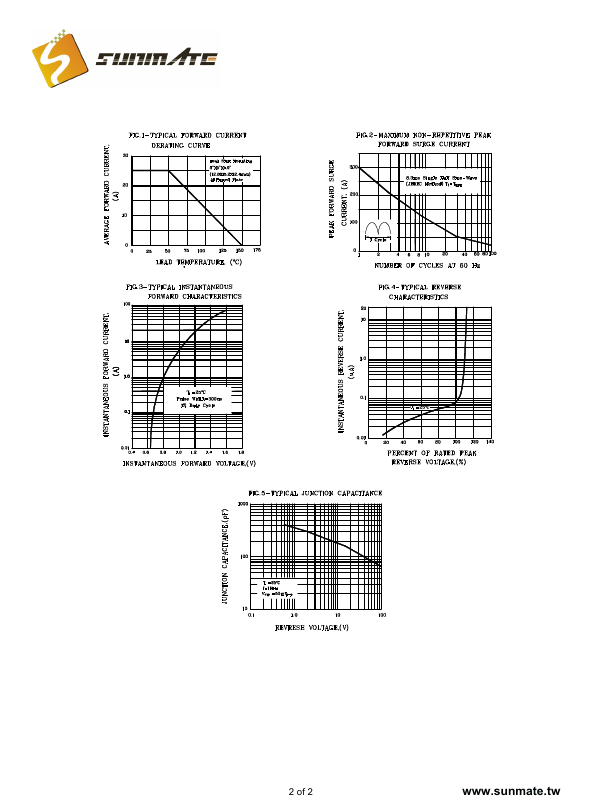

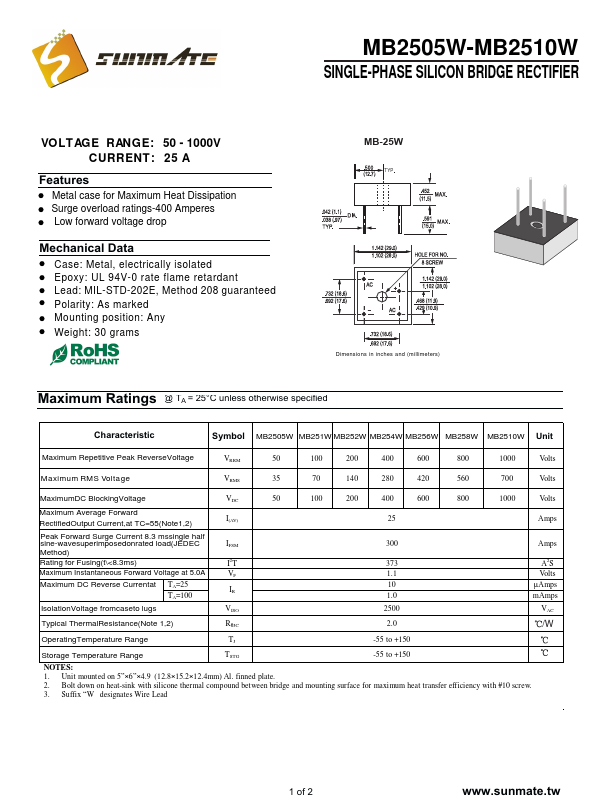

Additional preview pages of the MB251W datasheet.

D Metal case for Maximum Heat Dissipation D Surge overload ratings-400 Amperes D Low forward voltage drop Mechanical Data D Case: Metal, electrically isolated D Epoxy: UL 94V-0 rate flame retardant D Lead: MIL-STD-202E, Method 208 guaranteed D Polarity: As marked D Mounting position: Any D Weight: 30 grams MB-25W TYP Dimensions in inches and (millimeters) Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Symbol MB2505W MB251W MB252W MB254W MB256W MB258W MB2510W Unit Maxi.
