S3JBF SURFACE MOUNT RECTIFIER DIODES

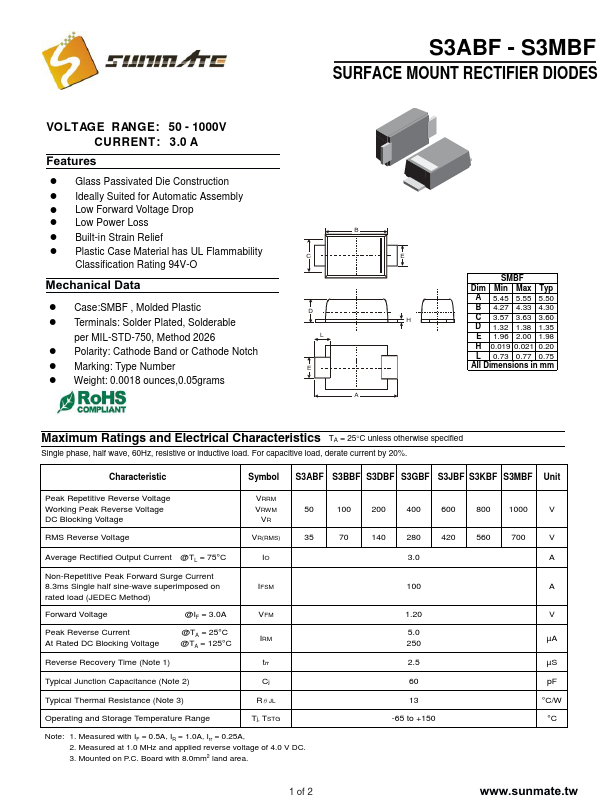

📥 Download Datasheet  Datasheet Preview Page 1

Description

S3ABF - S3MBF SURFACE MOUNT RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 3.0 A .

📥 Download Datasheet

Preview of S3JBF PDF

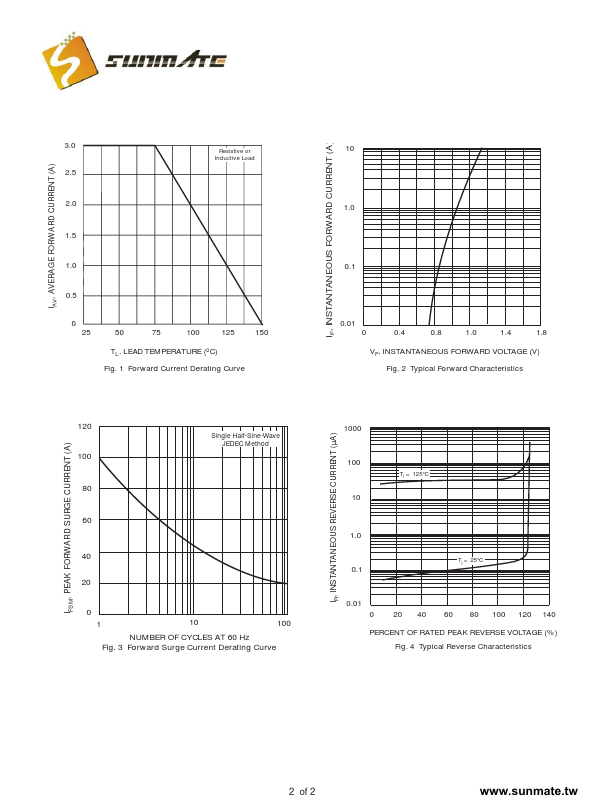

datasheet Preview Page 2

Datasheet Specifications

Part number
S3JBF
Manufacturer
Sunmate
File Size
91.52 KB
Datasheet
S3JBF-Sunmate.pdf
Description
SURFACE MOUNT RECTIFIER DIODES

Features

* ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss B ! Built-in Strain Relief ! Plastic Case Material has UL Flammability C E Classification Rating 94V-O Mechanical Data SMBF Dim Min Max Typ
