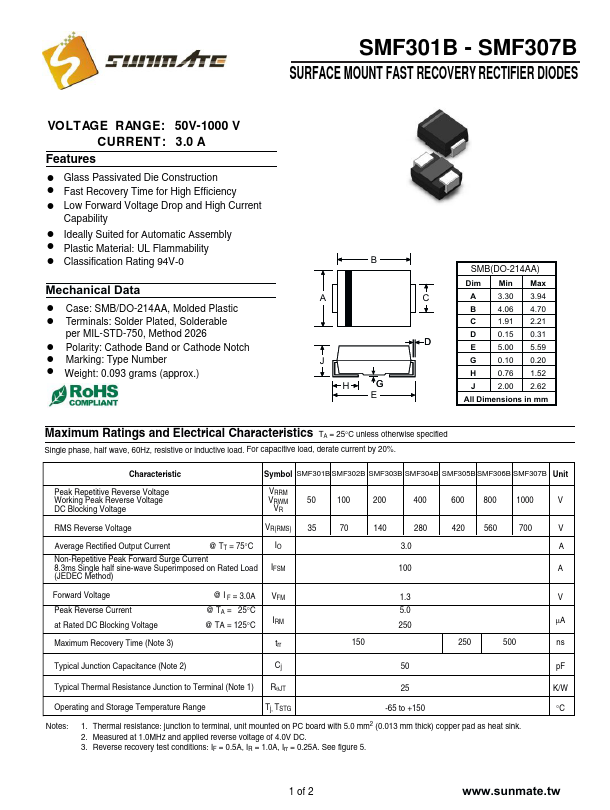

SMF307B, SMF301B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	SMF307B, SMF301B
Manufacturer	Sunmate
File Size	114.81 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	SMF301B-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: SMF307B, SMF301B. Please refer to the document for exact specifications by model.

! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability ! Classification Rating 94V-0 Mechanical Data ! Case: SMB/DO-214AA, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.093 grams (approx. ) B A J H G E SMB(DO-214AA) Dim Min Max.
