SFA70UP20DN - 200V Ultrafast Dual Diode

Datasheet Summary

Description

The SFA70UP20DN is an ultrafast dual diode with low forward voltage drop.

This device is designed for FWD in motor and power switching applications, It is specially suited for use in switching power supplies and industrial applications as welder.

Features

  • Ultrafast Soft Recovery: trr=40ns.
  • Typical Forward Voltage: VF=0.96V@ IF=35A.
  • Reverse Voltage: VRRM=200V.
  • Avalanche Energy Rated.

📥 Download Datasheet

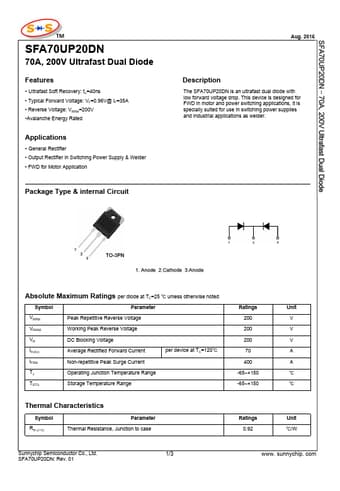

Datasheet preview – SFA70UP20DN
