STC8050 Datasheet - Suntac

STC8050 NPN Silicon Transistor

S STC8050 0 NPN Silicon Transistor 2W Output Amplifier of Portable Radios in Class B Push-pull Operation. Complimentary to STC8550 Collector Current: IC=1.5A Collector Power Dissipation: PC=2W (TC=25°C) 1 TO-92 1. Emitter 2. Base 3. Collector NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol Parameter VCBO VCEO VEBO IC PC TJ TSTG Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Cur.

STC8050 Datasheet (68.50 KB)

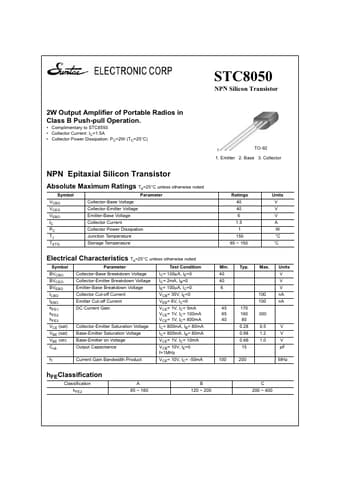

Preview of STC8050 PDF

Datasheet Details

Part number:

STC8050

Manufacturer:

Suntac

File Size:

68.50 KB

Description:

Npn silicon transistor.
