HV4630, 32-Channel Serial To Parallel Converter with P-Channel Open Drain Outputs

HV4530 HV4630 32-Channel Serial To Parallel Converter with P-Channel Open Drain Outputs Ordering Information Device HV4530 HV4630 Recommended Operatin.
The HV45 and HV46 are low-voltage serial to high-voltage parallel converters with P-Channel open drain outputs.

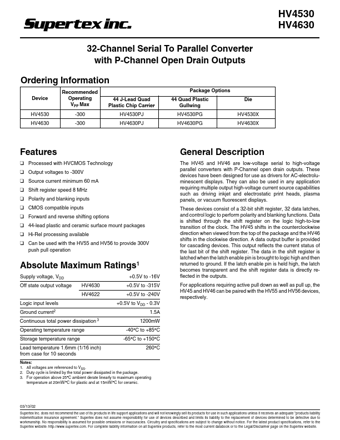

datasheet Preview Page 1 from Datasheet4u.com

HV4630_SupertexInc.pdf

HV4630 Datasheet Preview — Preview of HV4630 PDF

Datasheet Details

Part number:

HV4630

Manufacturer:

Supertex Inc

File Size:

462.37 KB

Description:

32-Channel Serial To Parallel Converter with P-Channel Open Drain Outputs

Features

* ❑ Processed with HVCMOS Technology ❑ Output voltages to -300V ❑ Source current minimum 60 mA ❑ Shift register speed 8 MHz ❑ Polarity and blanking inputs ❑ CMOS compatible inputs ❑ Forward and reverse shifting options ❑ 44-lead plastic and ceramic surface mount packages ❑ Hi-Rel processing available

Applications

* requiring active pull down as well as pull up, the HV45 and HV46 can be paired with the HV55 and HV56 devices, respectively. Absolute Maximum Ratings1 Supply voltage, VDD Off state output voltage HV4630 HV4622 Logic input levels Ground current2 dissipation 3 +0.5V to -16V +0.5V to -315V +0.5V to -2
