HV56 32-Channel Serial To Parallel Converter

HV56 Features

* o Processed with HVCMOS® technology o Output voltages up to 300V using a ramped supply voltage o Sink current minimum 100mA o Shift register speed 8MHz o Polarity and Blanking inputs o CMOS compatible inputs o Forward and reverse shifting options o Diode to VPP allows efficient power recovery o 44-l

HV55-Supertex.pdf

This datasheet PDF includes multiple part numbers: HV56, HV55. Please refer to the document for exact specifications by model.

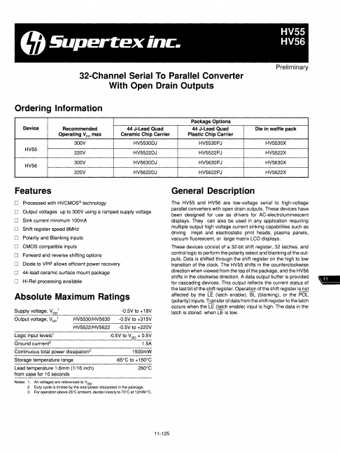

HV56 Datasheet Preview Page 2 HV56 Datasheet Preview Page 3

Datasheet Details

Part number:

HV56, HV55

Manufacturer:

Supertex

File Size:

217.47 KB

Description:

32-channel serial to parallel converter.

Note:

This datasheet PDF includes multiple part numbers: HV56, HV55.
Please refer to the document for exact specifications by model.
