SW105S15EHISMF Datasheet - Superworld Electronics

1W High Isolation 3kVdc Surface Mount DC-DC Converter

SW105S15EHISMF Features

* 3kVdc Isolated Single & Dual Outputs Higher 1W power in smaller package Low Cost, High Performance Industry standard 14-pin SMD device Operating Temp Range

* 40oC to 85oC 2 Year Warranty Internal Input and Output Filtering

SW105S15EHISMF General Description

The SW1 EHISM Series is a smaller industry standard SMD package, making it very suitable for high volume production. The package (19.9 x 13.5 x 9.5 mm) is fully encapsulated in a nonflammable plastic case (meeting UL 94V-0) and is designed to meet EN60950 and UL1950 safety standards. As outputs are .

SW105S15EHISMF Datasheet (176.10 KB)

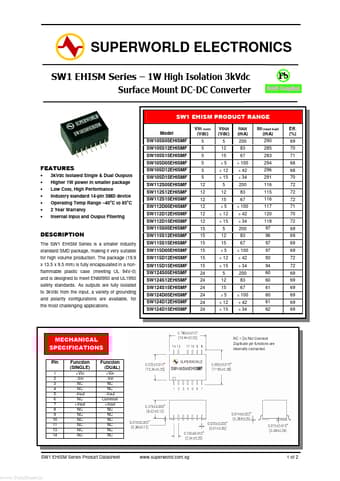

Preview of SW105S15EHISMF PDF

Datasheet Details

Part number:

SW105S15EHISMF

Manufacturer:

Superworld Electronics

File Size:

176.10 KB

Description:

1w high isolation 3kvdc surface mount dc-dc converter.
SUPERWORLD ELECTRONICS SW1 EHISM Series 1W High Isolation 3kVdc Surface Mount DC-DC Converter SW1 EHISM PRODUCT RANGE Model SW105S05EHISMF S.
