SDM109N-R56MF MOLDING TYPE DIP INDUCTORS

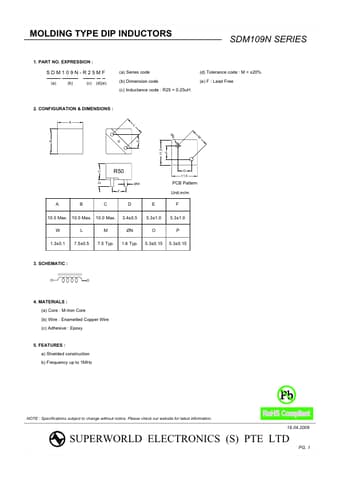

www.DataSheet.co.kr MOLDING TYPE DIP INDUCTORS 1. PART NO. EXPRESSION : SDM109N SERIES SDM109N-R25MF (a) (b) (c) (d)(e) (a) Series code (b) Dimension code (c) Inductance code : R25 = 0.25uH (d) Tolerance code : M = ±20% (e) F : Lead Free 2. CONFIGURATION & DIMENSIONS : A L ØN M B E 11.5 R50 ØW F P O 11.5 C PCB Pattern Unit:m/m A 10.5 Max. W 1.3±0.1 D B C D 3.4±0.5 ØN 1.6 Typ. E 5.3±1.0 O 5.3±0.15 F 5.3±1.0 P 5.3±0.15 10.5 Max. 10.0 Max. L 7.5±0.5 M 7.5 Typ. 3. SCHEMATIC :.

SDM109N-R56MF Features

* : a) Shielded construction b) Frequency up to 1MHz NOTE : Specifications subject to change without notice. Please check our website for latest information. 18.04.2008 SUPERWORLD ELECTRONICS (S) PTE LTD PG. 1 Datasheet pdf - http://www.DataSheet4U.net/ www.DataSheet.co.kr MOLDING TYPE DIP INDU
