SW3R48S12WSMF Datasheet - Superworld

3W Wide Input Single & Dual SMD DC-DC Converter

SW3R48S12WSMF Features

* Industry std 24-pin SMD package Wide Input Ranges 18-36 & 36-75 Vdc Single & Dual 1500Vdc Isolated Outputs Operating Temp Range

* 40oC to 100oC High Efficiencies to 85% Continuous Short Circuit

SW3R48S12WSMF General Description

The SW3R WSM Series is a 1500Vdc isolated range of single and dual output 3W DC-DC converters, designed with a 2:1 input voltage range and ideal for use in a whole variety of telecoms, industrial and distributed power applications. In an industry standard surface mount packages (33 x 16 x 11 mm), th.

SW3R48S12WSMF Datasheet (230.55 KB)

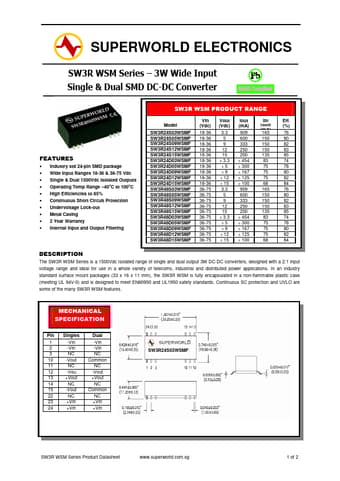

Preview of SW3R48S12WSMF PDF

Datasheet Details

Part number:

SW3R48S12WSMF

Manufacturer:

Superworld

File Size:

230.55 KB

Description:

3w wide input single & dual smd dc-dc converter.
www.DataSheet.co.kr SUPERWORLD ELECTRONICS SW3R WSM Series 3W Wide Input Single & Dual SMD DC-DC Converter SW3R WSM PRODUCT RANGE Model SW3.
