1SS176 - HIGH SPEED SWITCHING DIODE

Datasheet Summary

Features

  • :.
  • High switching speed: max. 4 ns.
  • Continuous reverse voltage:max. 30 V.
  • Repetitive peak reverse voltage:max. 35 V.
  • Pb / RoHS Free.

📥 Download Datasheet

Datasheet preview – 1SS176

Datasheet Details

Part number 1SS176
Manufacturer SynSemi
File Size 26.06 KB
Description HIGH SPEED SWITCHING DIODE
Datasheet download datasheet 1SS176 Datasheet

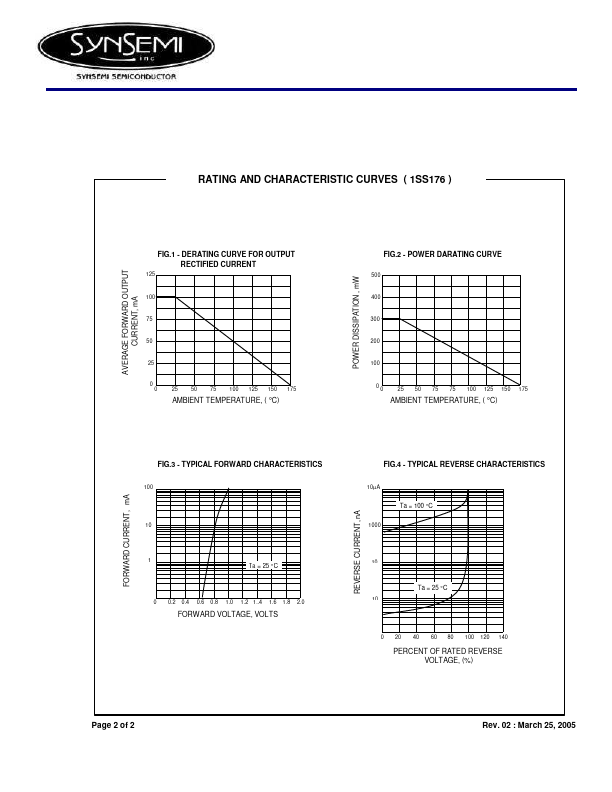

Additional preview pages of the 1SS176 datasheet.

📁 Similar Datasheet

  • 1SS176 - HIGH SPEED SWITCHING DIODE (EIC)
  • 1SS176 - HIGH SPEED SWITCHING DIODE (Toshiba)
  • 1SS176 - SILICON EPITAXIAL PLANAR DIODE (SEMTECH)
  • 1SS176 - AXIAL LEADED FAST SWITCHING DIODE (Sunmate)
  • 1SS177 - SWITCHING DIODES (Toshiba)
  • 1SS177 - AXIAL LEADED FAST SWITCHING DIODE (Sunmate)
  • 1SS177 - HIGH SPEED SWITCHING DIODE (EIC)
  • 1SS178 - HIGH SPEED SWITCHING DIODE (EIC)
  • 1SS178 - SWITCHING DIODES (Toshiba)
  • 1SS178 - HIGH SPEED SWITCHING DIODE (Sunmate)
Other Datasheets by SynSemi
  • 1SS177 - HIGH SPEED SWITCHING DIODE
  • 1SS178 - HIGH SPEED SWITCHING DIODE

Full PDF Text Transcription

Click to expand full text

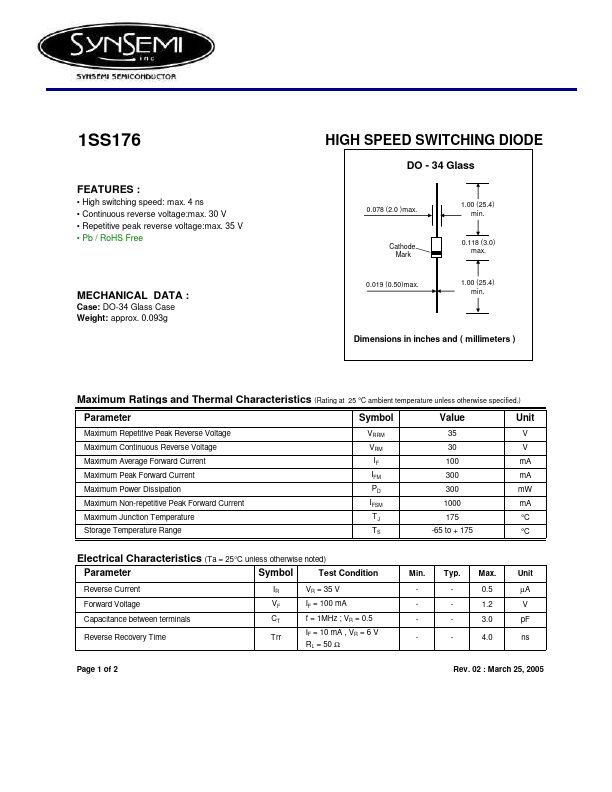

1SS176 FEATURES : • High switching speed: max. 4 ns • Continuous reverse voltage:max. 30 V • Repetitive peak reverse voltage:max. 35 V • Pb / RoHS Free MECHANICAL DATA : Case: DO-34 Glass Case Weight: approx. 0.093g HIGH SPEED SWITCHING DIODE DO - 34 Glass 0.078 (2.0 )max. Cathode Mark 0.019 (0.50)max. 1.00 (25.4) min. 0.118 (3.0) max. 1.00 (25.4) min. Dimensions in inches and ( millimeters ) Maximum Ratings and Thermal Characteristics (Rating at 25 °C ambient temperature unless otherwise specified.
