1SS178 - HIGH SPEED SWITCHING DIODE

Datasheet Summary

Features

:.
High switching speed: max. 4 ns.
Continuous reverse voltage:max. 80 V.
Repetitive peak reverse voltage:max. 90 V.
Pb / RoHS Free.

SynSemi

📥 Download Datasheet

Datasheet Details

Part number	1SS178
Manufacturer	SynSemi
File Size	16.70 KB
Description	HIGH SPEED SWITCHING DIODE
Datasheet	1SS178 Datasheet
Additional preview pages of the 1SS178 datasheet.

📁 Similar Datasheet

1SS178 - HIGH SPEED SWITCHING DIODE (EIC)
1SS178 - SWITCHING DIODES (Toshiba)
1SS178 - HIGH SPEED SWITCHING DIODE (Sunmate)
1SS176 - HIGH SPEED SWITCHING DIODE (EIC)
1SS176 - HIGH SPEED SWITCHING DIODE (Toshiba)
1SS176 - SILICON EPITAXIAL PLANAR DIODE (SEMTECH)
1SS176 - AXIAL LEADED FAST SWITCHING DIODE (Sunmate)
1SS177 - SWITCHING DIODES (Toshiba)
1SS177 - AXIAL LEADED FAST SWITCHING DIODE (Sunmate)
1SS177 - HIGH SPEED SWITCHING DIODE (EIC)

Other Datasheets by SynSemi

1SS176 - HIGH SPEED SWITCHING DIODE
1SS177 - HIGH SPEED SWITCHING DIODE

Full PDF Text Transcription

Click to expand full text

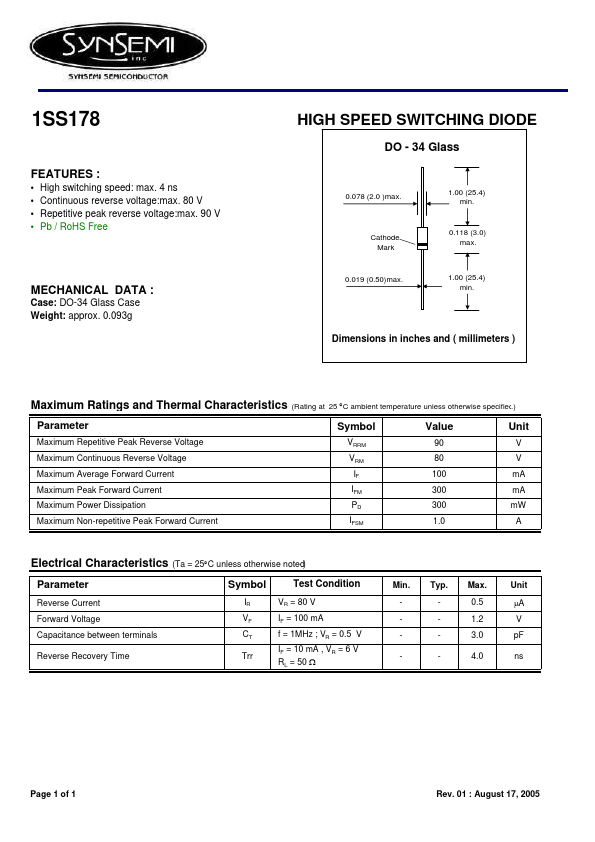

1SS178 FEATURES : • High switching speed: max. 4 ns • Continuous reverse voltage:max. 80 V • Repetitive peak reverse voltage:max. 90 V • Pb / RoHS Free MECHANICAL DATA : Case: DO-34 Glass Case Weight: approx. 0.093g HIGH SPEED SWITCHING DIODE DO - 34 Glass 0.078 (2.0 )max. Cathode Mark 0.019 (0.50)max. 1.00 (25.4) min. 0.118 (3.0) max. 1.00 (25.4) min. Dimensions in inches and ( millimeters ) Maximum Ratings and Thermal Characteristics (Rating at 25 °C ambient temperature unless otherwise specified.) Parameter Maximum Repetitive Peak Reverse Voltage Maximum Continuous Reverse Voltage Maximum Average Forward Current Maximum Peak Forward Current Maximum Power Dissipation Maximum Non-repetitive Peak Forward Current Symbol VRRM VRM IF IFM PD IFSM Value 90 80 100 300 300 1.
