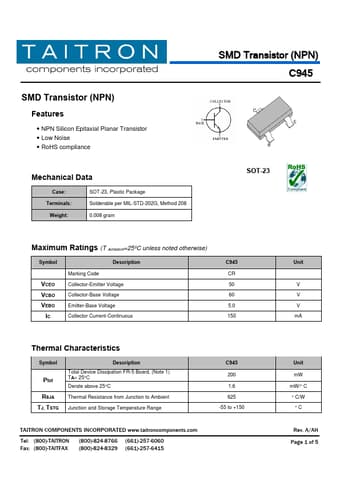

C945 Datasheet - TAITRON

C945 NPN Transistor

VCEO VCBO VEBO IC Marking Code Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current-Continuous C945 CR 50 60 5.0 150 Unit V V V mA Thermal Characteristics Symbol Ptot RθJA TJ, TSTG Description Total Device Dissipation FR-5 Board, (Note 1) TA= 25°C Derate abo.

C945 Features

* NPN Silicon Epitaxial Planar Transistor

* Low Noise

* RoHS compliance Mechanical Data Case: Terminals: Weight: SOT-23, Plastic Package Solderable per MIL-STD-202G, Method 208 0.008 gram SMD Transistor (NPN) C945 SOT-23 Maximum Ratings (T Ambient=25ºC unless noted other

C945-TAITRON.pdf
