S3M 3.0A Surface Mount Rectifier

TAITRON

S3M Description

3.0A Surface Mount Rectifier S3A * S3M 3.0A Surface Mount Rectifier .
S3A S3B S3D S3G S3J S3K S3M Unit Conditions VRRM VRMS Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage 50 35 100 200 400 600 800 1000.

S3M Features

* Low profile surface mounted package
* Ideal for automated placement
* Glass passivated chip junction
* Low forward voltage drop
* Low leakage current
* High forward surge capability
* High temperature soldering: 250 °C / 10 seconds at termin

📥 Download Datasheet

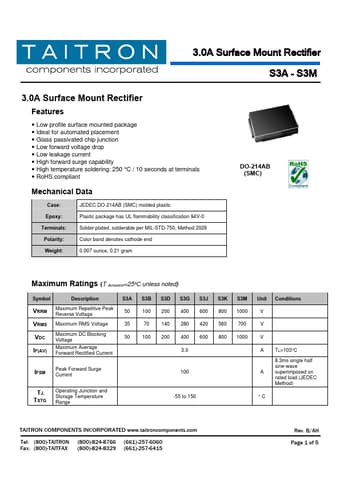

S3M Datasheet Preview — Preview of S3M PDF

Datasheet Details

Part number: S3M
Manufacturer: TAITRON
File Size: 178.69 KB
Datasheet: S3M-TAITRON.pdf
Description: 3.0A Surface Mount Rectifier
