ERA15-01 - 1A PLASTIC SILICON RECTIFIER

TAYCHIPST

ERA15-01 Description

PLASTIC SILICON RECTIFIER .

ERA15-01 Features

* l Low cost l Diffused junction l Low leakage l Low forward voltage drop l High current capability l Easily cleaned with Freon,Alcohol,Isopropanol and similar solvents l The plastic material carries U/L recognition 94V-0 ERA15-01 THRU ERA15-10 50V-1000V 1.0A MECHANICAL DATA l Case:JEDEC DO

📥 Download Datasheet

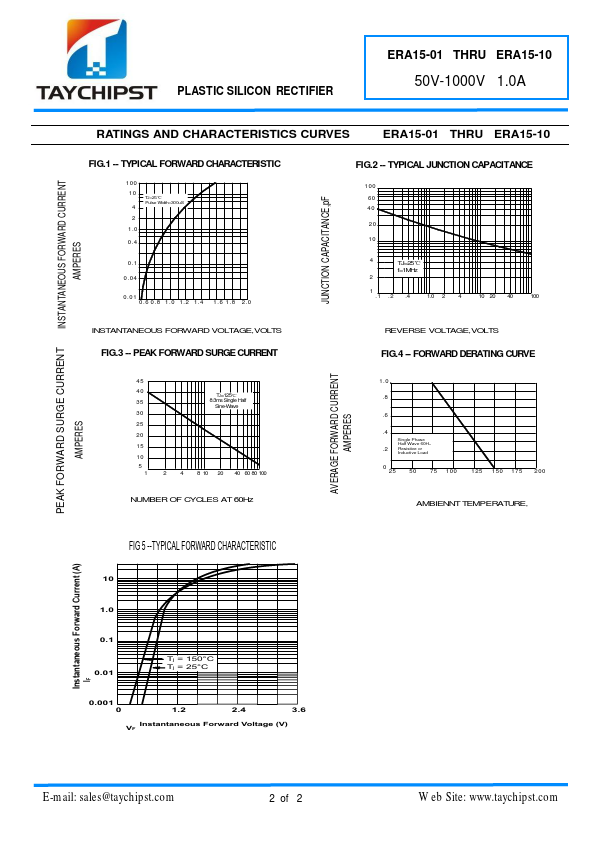

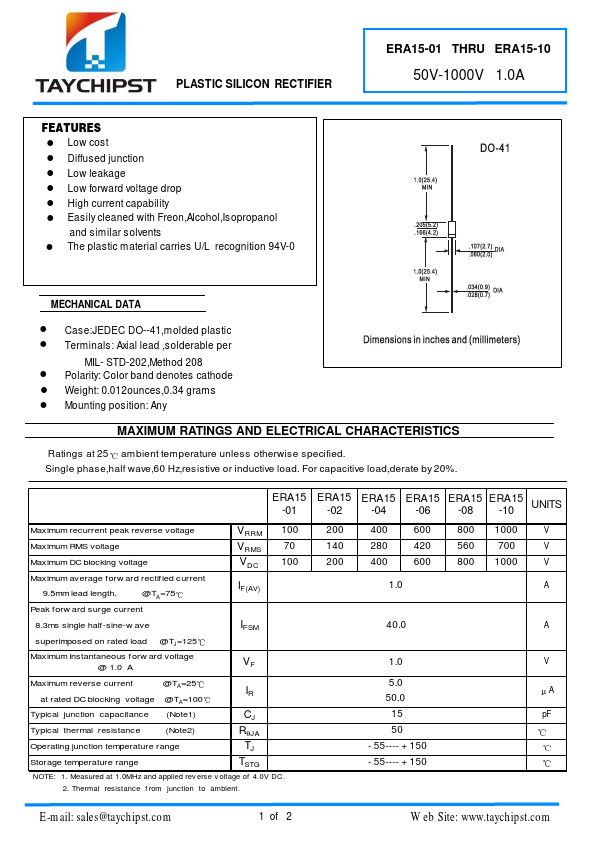

ERA15-01 Datasheet Preview — Preview of ERA15-01 PDF

Datasheet Details

Part number: ERA15-01
Manufacturer: TAYCHIPST
File Size: 1.89 MB
Datasheet: ERA15-01-TAYCHIPST.pdf
Description: 1A PLASTIC SILICON RECTIFIER
