ERA-1SM+

Monolithic Amplifier

ERA-1SM+ Features

* DC-8 GHz

* Single Voltage Supply

* Internally Matched to 50 Ohms

* Unconditionally Stable

* Low Performance Variation Over Temperature

* Transient Protected

* Aqueous washable

* Protected By US Patent 6,943,629 Typical Applications

ERA-1SM+ General Description

ERA-1SM+ (RoHS compliant) is a wideband amplifier offering high dynamic range. It has repeatable per- formance from lot to lot. It is enclosed in a Micro-X package. ERA-1SM+ uses Darlington configuration and is fabricated using InGaP HBT technology. Expected MTTF is 5,800 years at 85°C case temperat.

ERA-1SM+ Datasheet (305.16 KB)

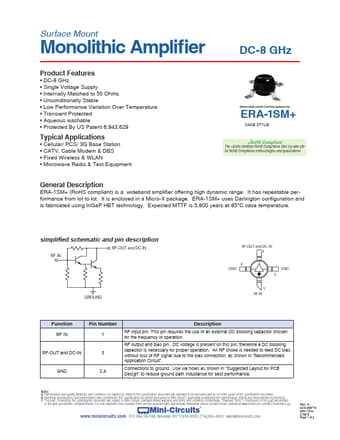

Preview of ERA-1SM+ PDF

Datasheet Details

Part number:

ERA-1SM+

Manufacturer:

Mini-Circuits

File Size:

305.16 KB

Description:

Monolithic amplifier.
