ERA-2+, ERA-2+-Mini Datasheet - Mini-Circuits

ERA-2+ - Monolithic Amplifier

ERA-2+ (RoHS compliant) is a wideband amplifier offering high dynamic range.

It has repeatable perfor- mance from lot to lot.

It is enclosed in a Micro-X package.

ERA-2+ uses Darlington configuration and is fabricated using InGaP HBT technology.

Expected MTTF is 9100 years at 85°C case temperature.

ERA-2+ Features

* DC-6 GHz

* Single voltage supply

* Internally matched to 50 ohms

* Unconditionally stable

* Low performance variation over temperature

* Transient protected

* Aqueous washable

* Protected By US Patent 6,943,629 Typical Applications

ERA-2+-Mini-Circuits.pdf

This datasheet PDF includes multiple part numbers: ERA-2+, ERA-2+-Mini. Please refer to the document for exact specifications by model.

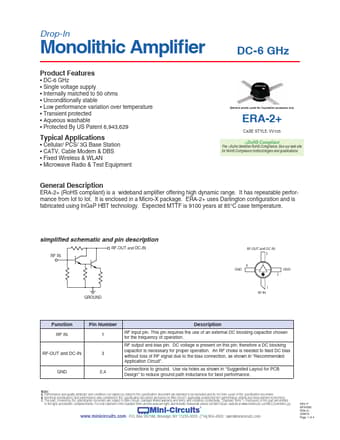

ERA-2+ Datasheet Preview Page 2 ERA-2+ Datasheet Preview Page 3
