ERA-2SM+

Monolithic Amplifier

ERA-2SM+ Features

* DC-6 GHz

* Single Voltage Supply

* Internally Matched to 50 Ohms

* Unconditionally Stable

* Low Performance Variation Over Temperature

* Transient Protected

* Aqueous washable

* Protected By US Patent 6,943,629 Typical Applications

ERA-2SM+ General Description

ERA-2SM+ (RoHS compliant) is a wideband amplifier offering high dynamic range. It has repeatable per- formance from lot to lot. It is enclosed in a Micro-X package. ERA-2SM+ uses Darlington configuration and is fabricated using InGaP HBT technology. Expected MTTF is 8,000 years at 85°C case temperat.

ERA-2SM+ Datasheet (298.85 KB)

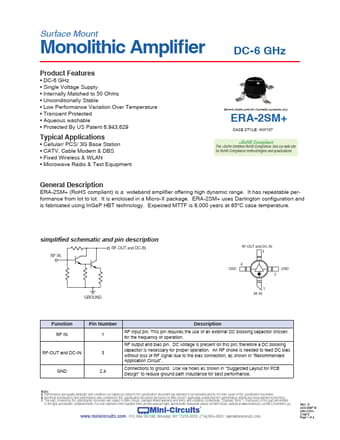

Preview of ERA-2SM+ PDF

Datasheet Details

Part number:

ERA-2SM+

Manufacturer:

Mini-Circuits

File Size:

298.85 KB

Description:

Monolithic amplifier.
