ERA-3SM+ Monolithic Amplifier

ERA-3SM+ (RoHS compliant) is a wideband amplifier offering high dynamic range. It has repeatable per- formance from lot to lot. It is enclosed in a Micro-X package. ERA-3SM+ uses Darlington configuration and is fabricated using InGaP HBT technology. Expected MTTF is 9,000 years at 85°C case temperat.

ERA-3SM+ Features

* DC-3 GHz

* Single Voltage Supply

* Internally Matched to 50 Ohms

* Unconditionally Stable

* Low Performance Variation Over Temperature

* Transient Protected

* Aqueous washable

* Protected By US Patent 6,943,629 Typical Applications

ERA-3SM+ Datasheet (299.61 KB)

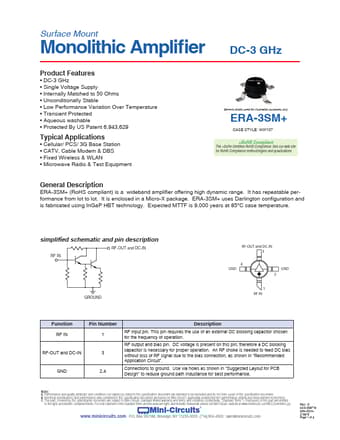

ERA-3SM+ Datasheet Preview — Preview of ERA-3SM+ PDF
