TCS9208 - 1.2MHZ Step-up DC/DC Converter

Datasheet Summary

Description

The TCS9208 step-up switching regulator generates an output voltage of up to 6V from an input voltage as low as 1.6V.

Ideal for applications where space is limited, it switches at 1.2MHz, allowing the use of tiny, low cost and low profile external components.

Features

  • very low shutdown current of 0.5uA. The TCS9208 is available in the 6-lead SOT-23 package.

📥 Download Datasheet

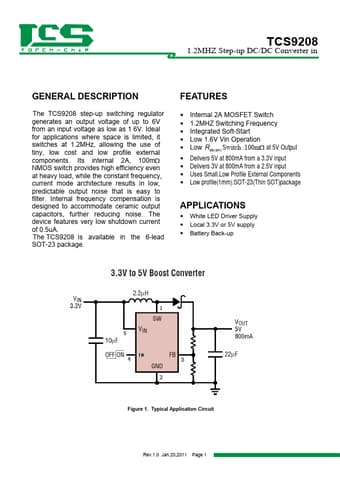

Datasheet preview – TCS9208

Datasheet Details

Part number TCS9208
Manufacturer TCS
File Size 498.67 KB
Description 1.2MHZ Step-up DC/DC Converter
Datasheet download datasheet TCS9208 Datasheet
Additional preview pages of the TCS9208 datasheet.

📁 Similar Datasheet

  • TCS-DL004-250-WH - Dual Transient Current Suppressors (BOURNS)
  • TCS-DL004-500-WH - Dual Transient Current Suppressors (BOURNS)
  • TCS-DL004-750-WH - Dual Transient Current Suppressors (BOURNS)
  • TCS0101 - USB Connectors (HOSIDEN)
  • TCS0102 - USB Connectors (HOSIDEN)
  • TCS10DLU - Digital-Output Magnetic Sensor (Toshiba Semiconductor)
  • TCS10DPU - Digital-Output Magnetic Sensor (Toshiba Semiconductor)
  • TCS10NLU - Digital-Output Magnetic Sensor (Toshiba Semiconductor)
  • TCS10NPU - Digital-Output Magnetic Sensor (Toshiba Semiconductor)
  • TCS10SLU - Digital-Output Magnetic Sensor (Toshiba Semiconductor)
Other Datasheets by TCS
  • TCS9302 - 2A Step Up Regulator
  • TCS2109 - 500mA Low Dropout CMOS Voltage Regulators
  • TCS4525 - 3MHz Synchronous Step-Down DC-DC Converter
  • TCS6017D - 500mA Linear Lithium-Ion Battery Charger
  • TCS7191B - 2.8W Non-Clip Class-D Audio Power Amplifier

Full PDF Text Transcription

Click to expand full text
TCS9208 1.2MHZ Step-up DC/DC Converter in GENERAL DESCRIPTION The TCS9208 step-up switching regulator generates an output voltage of up to 6V from an input voltage as low as 1.6V. Ideal for applications where space is limited, it switches at 1.2MHz, allowing the use of tiny, low cost and low profile external components. Its internal 2A, 100mΩ NMOS switch provides high efficiency even at heavy load, while the constant frequency, current mode architecture results in low, predictable output noise that is easy to filter. Internal frequency compensation is designed to accommodate ceramic output capacitors, further reducing noise. The device features very low shutdown current of 0.5uA. The TCS9208 is available in the 6-lead SOT-23 package. FEATURES • Internal 2A MOSFET Switch • 1.
