TCS9302 Datasheet, Regulator, TCS

TCS9302 Features

  • Regulator Integrated 80mΩ Power MOSFET 2V to 24V Input Voltage 1MHz Fixed Switching Frequency Internal 4A Switch Current Limit Adjustable Output Voltage Internal Compensation Up to 28V Output Vol

PDF File Details

Part number:

TCS9302

Manufacturer:

TCS

File Size:

601.60kb

Download:

📄 Datasheet

Description:

2a step up regulator. The TCS9302 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The TCS93

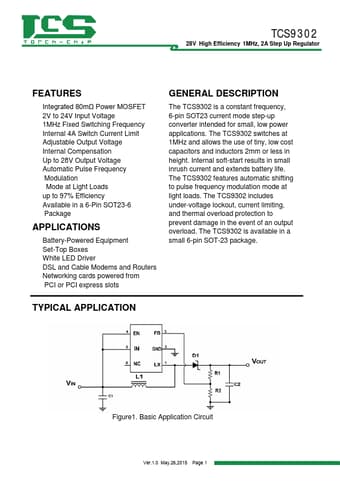

Datasheet Preview: TCS9302 📥 Download PDF (601.60kb)
Page 2 of TCS9302 Page 3 of TCS9302

TCS9302 Application

  • Applications Battery-Powered Equipment Set-Top Boxes White LED Driver DSL and Cable Modems and Routers Networking cards powered from PCI or PCI expr
