TCS4525 - 3MHz Synchronous Step-Down DC-DC Converter

Datasheet Summary

Description

The TCS4525 is a high-frequency, high-current synchronous step-down dc-dc converter optimized to supply the different sub systems of smart-phones, Tablets, and portable applications powered by one cell Li

Ion or three cell Alkaline/NiCd/NiMH batteries.

Features

  • 2.7V to 5.5V Input Voltage Range 3MHz Constant Switching Frequency 5A Available Load Current I2C Control Interface with Dynamic Voltage Scaling Support Programmable Output Voltage: 0.6V to 1.4V in 6.25mV Steps Small size, 0.33µH or 0.47µH Inductor Solution 52µA Typical Quiescent Current PFM/PWM Operation for Optimum Increased Efficiency Excellent Load and Line Transient Response Short Circuit and Thermal Protection Available in 2.0mm×1.6mm WCSP-20 Package RoHS Compliant and 100% Lead(Pb)-Free Ha.

📥 Download Datasheet

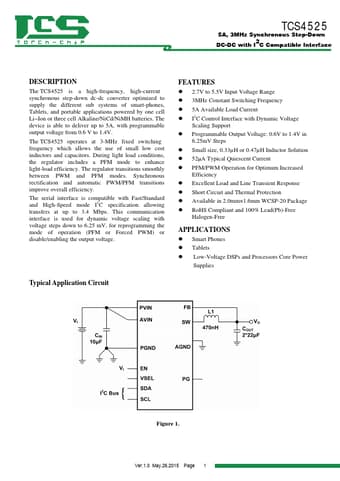

Datasheet preview – TCS4525

Datasheet Details

Part number TCS4525
Manufacturer TCS
File Size 2.70 MB
Description 3MHz Synchronous Step-Down DC-DC Converter
Datasheet download datasheet TCS4525 Datasheet
Additional preview pages of the TCS4525 datasheet.

📁 Similar Datasheet

  • TCS-DL004-250-WH - Dual Transient Current Suppressors (BOURNS)
  • TCS-DL004-500-WH - Dual Transient Current Suppressors (BOURNS)
  • TCS-DL004-750-WH - Dual Transient Current Suppressors (BOURNS)
  • TCS0101 - USB Connectors (HOSIDEN)
  • TCS0102 - USB Connectors (HOSIDEN)
  • TCS10DLU - Digital-Output Magnetic Sensor (Toshiba Semiconductor)
  • TCS10DPU - Digital-Output Magnetic Sensor (Toshiba Semiconductor)
  • TCS10NLU - Digital-Output Magnetic Sensor (Toshiba Semiconductor)
  • TCS10NPU - Digital-Output Magnetic Sensor (Toshiba Semiconductor)
  • TCS10SLU - Digital-Output Magnetic Sensor (Toshiba Semiconductor)
Other Datasheets by TCS
  • TCS2109 - 500mA Low Dropout CMOS Voltage Regulators
  • TCS6017D - 500mA Linear Lithium-Ion Battery Charger
  • TCS7191B - 2.8W Non-Clip Class-D Audio Power Amplifier
  • TCS9208 - 1.2MHZ Step-up DC/DC Converter
  • TCS9302 - 2A Step Up Regulator

Full PDF Text Transcription

Click to expand full text
TCS4525 5A, 3MHz Synchronous Step-Down DC-DC with I2C Compatible Interface DESCRIPTION The TCS4525 is a high-frequency, high-current synchronous step-down dc-dc converter optimized to supply the different sub systems of smart-phones, Tablets, and portable applications powered by one cell Li−Ion or three cell Alkaline/NiCd/NiMH batteries. The device is able to deliver up to 5A, with programmable output voltage from 0.6 V to 1.4V. The TCS4525 operates at 3-MHz fixed switching frequency which allows the use of small low cost inductors and capacitors. During light load conditions, the regulator includes a PFM mode to enhance light-load efficiency. The regulator transitions smoothly between PWM and PFM modes.
